BTC5103I3 - NPN Transistor

BTC5103I3 Description

CYStech Electronics Corp.High Speed Switching Transistor Spec.No.: C651I3 www.DataSheet4U.com Issued Date : 2005.10.05 Revised Date :2009.02.04 Pa.

BTC5103I3 Features

* Low VCE(sat), VCE(sat)=0.33 V(typical), at IC / IB = 3A / 0.3A
* High Switching Speed
* Wide SOA
* Complementary to BTA1952I3
* RoHS compliant package BVCEO IC RCESAT 60V 5A 110mΩ Symbol BTC5103I3 Outline TO-251 B：Base C：Collector E：Emitter B C CE Abs

BTC5103I3 Applications

* or systems.
* CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance. BTC5103I3 CYStek Product Specification

📥 Download Datasheet

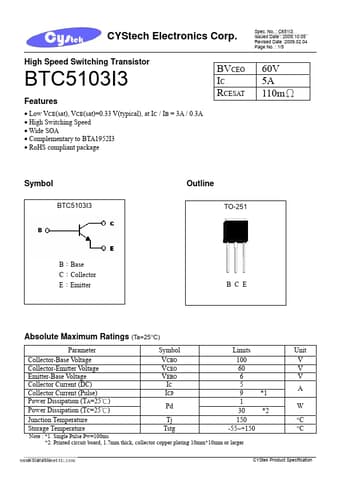

Preview of BTC5103I3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
