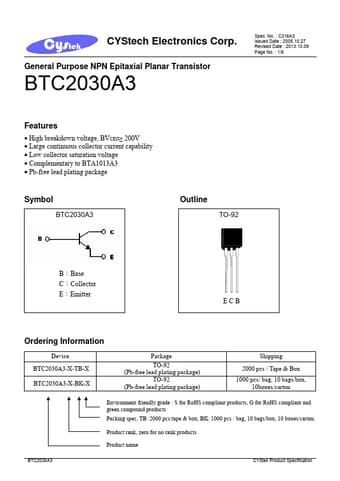

BTC2030A3 - NPN Transistor

Cystech Electonics Corp

Datasheet Details

Part number	BTC2030A3
Manufacturer	Cystech Electonics Corp
File Size	205.55 KB
Description	NPN Transistor
Datasheet	BTC2030A3_CystechElectonicsCorp.pdf

High breakdown voltage, BVCEO≥ 200V.
Large continuous collector current capability.
Low collector saturation voltage.
Pb-free package Symbol BTC2030A3 Outline TO-92 B：Base C：Collector E：Emitter ECB Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Power Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC IB Pd Tj Tstg Limits 280 200 6.
