S6J336AHSBSE20000, S6J3360 32-bit T1G Microcontroller

S6J336AHSBSE20000 Description

S6J3360 Series S6J3370 Series 32-bit Arm® Cortex®-R5F TRAVEO™ T1G Microcontroller S6J3360/70 is a series of Automotive Cluster applications in genera.
15 5.

S6J336AHSBSE20000 Features

* Key Features
* 32-bit Arm® Cortex®-R5F CPU core at up to 132 MHz
* 80-MHz internal flash memory access speed
* Flash memory size (max)  TC-Flash: 2,112 KB/ Work-Flash: 112 KB
* RAM size (max)  TC-RAM: 128 KB/ System -RAM: 128 KB (this includes 16 KB + 8 KB back-up area)
* 5 V or

S6J336AHSBSE20000 Applications

* in general meter control to connect to the driver as speed meter, tachometer, temperature meter, and fuel meter. This embedded device enables next-generation functions such as Controller Area Network with Flexible Data rate (CAN FD) and Secure Hardware Extension (SHE). MCUs for this application requ

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S6J336AHSBSE20000, S6J3360. Please refer to the document for exact specifications by model.

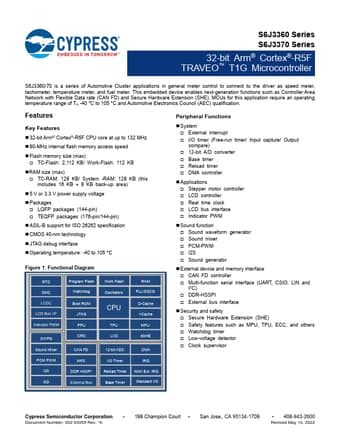

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S6J336AHSBSE20000, S6J3360
Manufacturer
Cypress
File Size
3.86 MB
Datasheet
S6J3360-Cypress.pdf
Description
32-bit T1G Microcontroller
Note
This datasheet PDF includes multiple part numbers: S6J336AHSBSE20000, S6J3360.
Please refer to the document for exact specifications by model.
