S6BP501A 3ch DC/DC Converter

S6BP501A Description

S6BP501A, S6BP502A 3ch DC/DC Converter IC for Automotive Cluster S6BP501A/S6BP502A is a three channel output power management IC.This IC includes on.

S6BP501A Features

* Wide input voltage range : 2.5V to 42V (DD3V)
* Adjustable output voltage with pairs of resistors  DD1V : 1.0V to 1.3V  DD3V : 3.2V to 3.4V  DD5V : 5.0V to 5.2V
* Switching frequency range (synchronizable to external clock by SYNC function)  DD1V, DD5V Internal clock operat

S6BP501A Applications

* Each output voltage can be adjusted by external resistors. Both DD1V and DD5V support the switching frequencies up to 2.4 MHz to allow use of small size inductors, which can reduce a part mounting area. To decrease EMI, this IC equips a SYNC function that synchronizes to an external clock signal an

📥 Download Datasheet

Preview of S6BP501A PDF

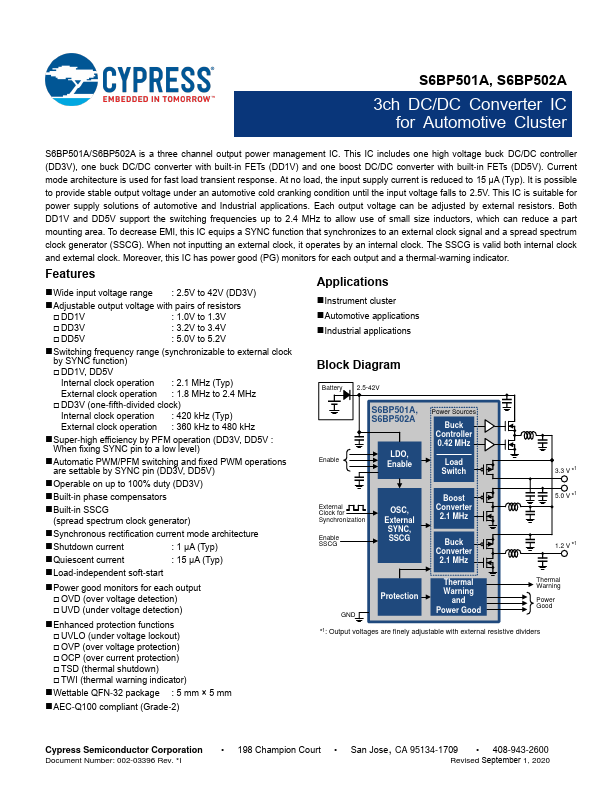

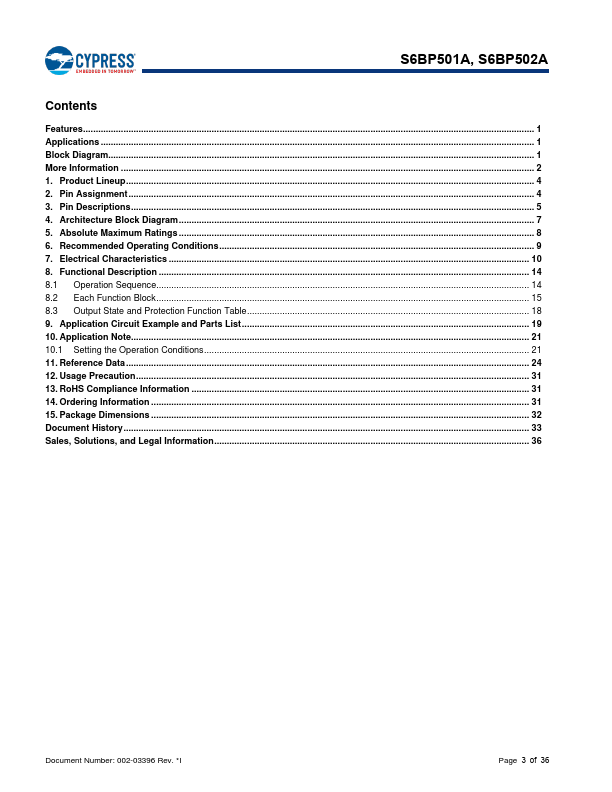

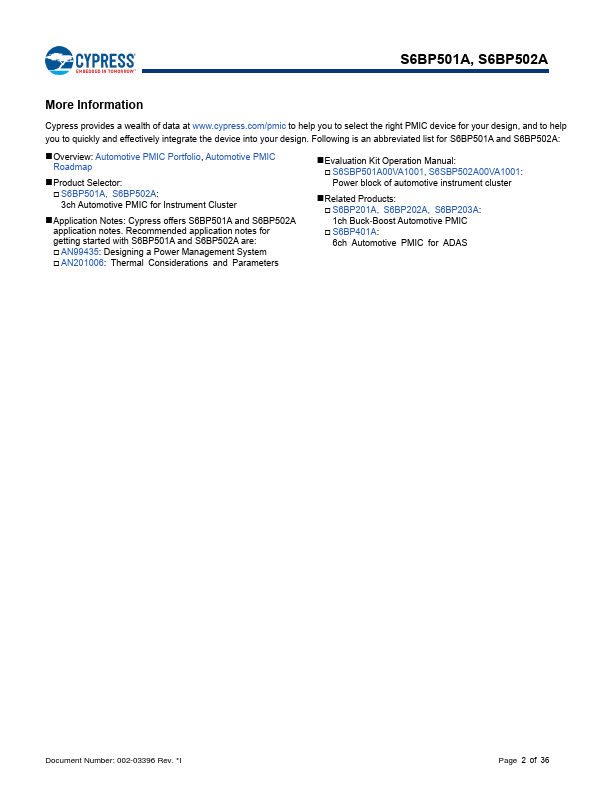

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S6BP501A
Manufacturer
Cypress
File Size
1.34 MB
Datasheet
S6BP501A-Cypress.pdf
Description
3ch DC/DC Converter
