CYW43353 - Single-Chip 5G MAC/Baseband/Radio

Cypress

📥 Download Datasheet

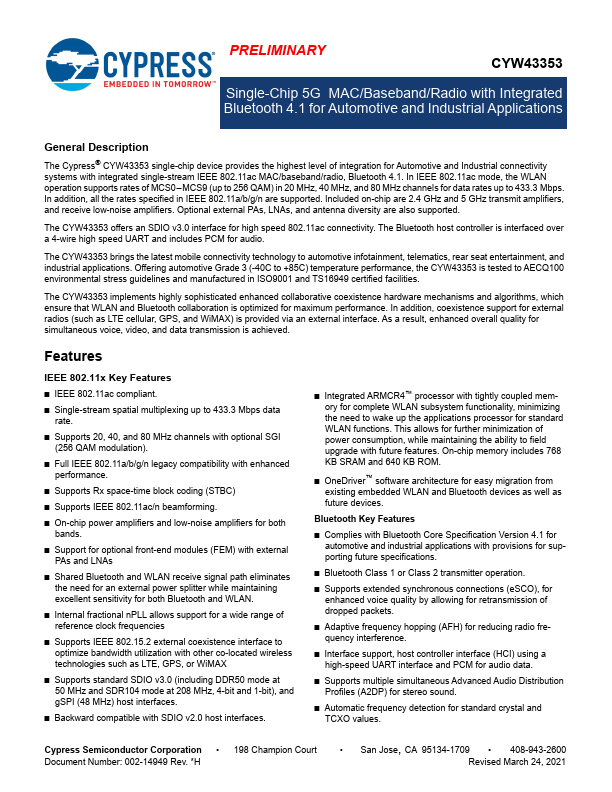

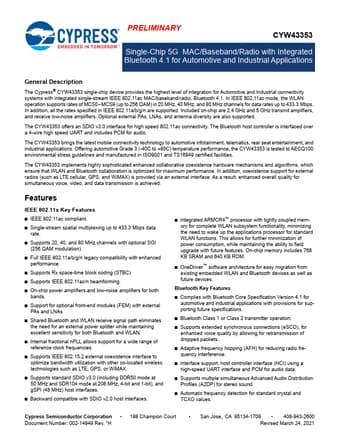

CYW43353 Datasheet Preview — Preview of CYW43353 PDF

Datasheet Details

Part number	CYW43353
Manufacturer	Cypress
File Size	1.92 MB
Description	Single-Chip 5G MAC/Baseband/Radio
Datasheet	CYW43353-Cypress.pdf

CYW43353 Product details

Description

The Cypress® CYW43353 single-chip device provides the highest level of integration for Automotive and Industrial connectivity systems with integrated single-stream IEEE 802.11ac MAC/baseband/radio, Bluetooth 4.1. MCS9 (up to 256 QAM) in 20 MHz, 40 MHz, and 80 MHz channels for data rates up to 433.3 Mbps.

Features

IEEE 802.11x Key Features.
IEEE 802.11ac compliant.
Single-stream spatial multiplexing up to 433.3 Mbps data rate.
Supports 20, 40, and 80 MHz channels with optional SGI (256 QAM modulation).
Full IEEE 802.11a/b/g/n legacy compatibility with enhanced performance.
Supports Rx space-time block coding (STBC).
Supports IEEE 802.11ac/n beamforming.
On-chip power amplifiers and low-noise amplifiers for both bands.
Support for optional front-end modules (FE.
