CYBL10573 - Programmable Radio-on-Chip

Product Overview

Cypress

Datasheet Details

Part number	CYBL10573
Manufacturer	Cypress
File Size	3.77 MB
Description	Programmable Radio-on-Chip
Datasheet	CYBL10573 Datasheet

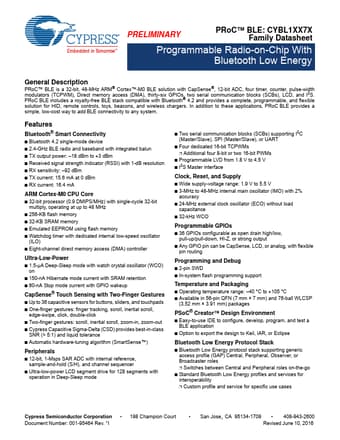

Additional preview pages of the CYBL10573 datasheet.

Product details

Description

PRoC™ BLE is a 32-bit, 48-MHz ARM® Cortex™-M0 BLE solution with CapSense®, 12-bit ADC, four timer, counter, pulse-width modulators (TCPWM), Direct memory access (DMA), thirty-six GPIOs, two serial communication blocks (SCBs), LCD, and I2S.

Features

Bluetooth® Smart Connectivity.
Bluetooth 4.2 single-mode device.
2.4-GHz BLE radio and baseband with integrated balun.
TX output power:.
18 dBm to +3 dBm.
Received signal strength indicator (RSSI) with 1-dB resolution.
RX sensitivity:.
92 dBm.
TX current: 15.6 mA at 0 dBm.
RX current: 16.4 mA ARM Cortex-M0 CPU Core.
32-bit processor (0.9 DMIPS/MHz) with single-cycle 32-bit multiply, operating at up to 48 MHz.
256-KB flash memory.
