CY9BF418T - 32-bit FM3 Microcontroller

Product Overview

Cypress

Part number	CY9BF418T
Manufacturer	Cypress
File Size	1.68 MB
Description	32-bit FM3 Microcontroller
Datasheet	CY9BF418T Datasheet
Note	This datasheet PDF includes multiple part numbers: CY9BF418T, CY9BF416S. Please refer to the document for exact specifications by model.

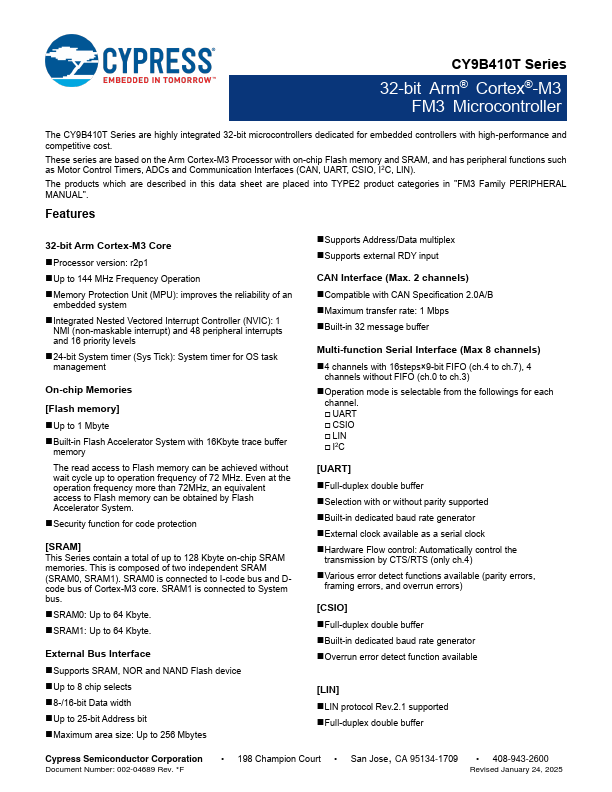

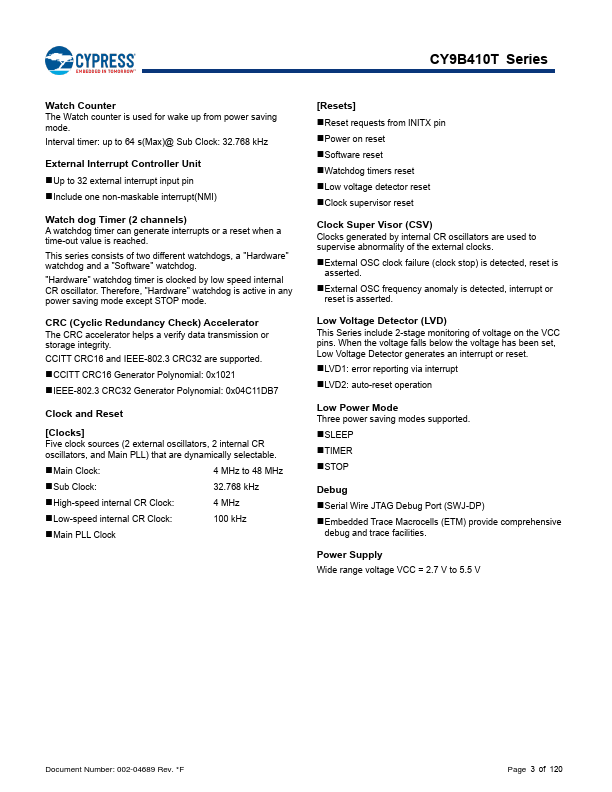

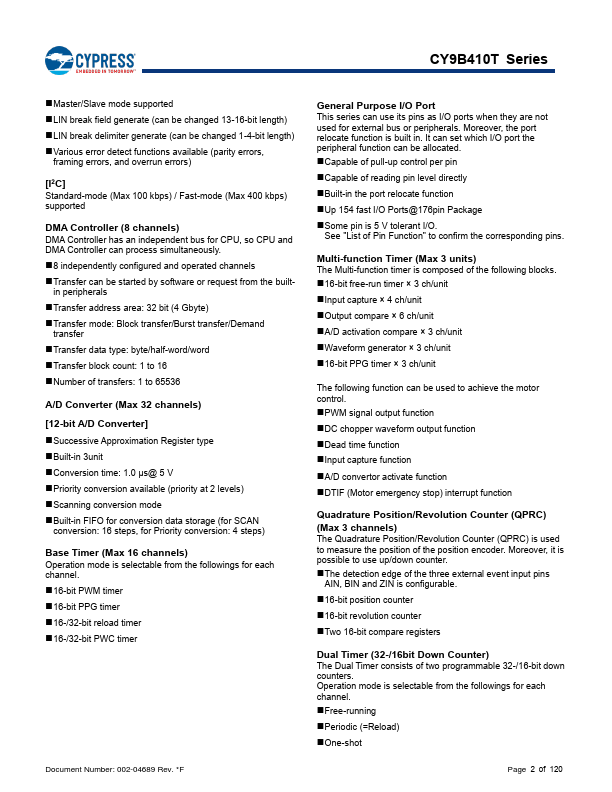

Additional preview pages of the CY9BF418T datasheet.

32-bit Arm Cortex-M3 Core.
Processor version: r2p1.
Up to 144 MHz Frequency Operation.
Memory Protection Unit (MPU): improves the reliability of an embedded system.
Integrated Nested Vectored Interrupt Controller (NVIC): 1 NMI (non-maskable interrupt) and 48 peripheral interrupts and 16 priority levels.
24-bit System timer (Sys Tick): System timer for OS task management On-chip Memories [Flash memory].
Up to 1 Mbyte.
Built-in Flash Accelerator System with 16Kbyte tra.
