CY14V101PS - 1-Mbit (128K x 8) Quad SPI nvSRAM

Cypress

📥 Download Datasheet

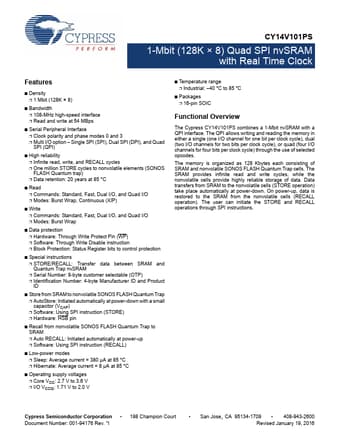

CY14V101PS Datasheet Preview — Preview of CY14V101PS PDF

Datasheet Details

Part number	CY14V101PS
Manufacturer	Cypress
File Size	1.04 MB
Description	1-Mbit (128K x 8) Quad SPI nvSRAM
Datasheet	CY14V101PS-Cypress.pdf

CY14V101PS Product details

Description

12 Status Register 14 Write Disable (WRDI) Instruction 18 Write Enable (WREN) Instruction 18 Enable DPI (DPIEN) Instruction 19 Enable QPI (QPIEN) Instruction 19 Enable SPI (SPIEN) Instruction 19 SPI Memory Read Instructions 20 Read Instructions 20 Fast Read Instructions 21 Write Instructions 24 System Resources Instructions 28 Software Reset (RESET) Instruction 28 Default Recovery Instruction 29 Read Real Time Clock (RDRTC) Instruction 29 Write Real Time Clock (WRRTC) Instruction

Features

Density.
1 Mbit (128K × 8).
Bandwidth.
108-MHz high-speed interface.
Read and write at 54 MBps.
Serial Peripheral Interface.
Clock polarity and phase modes 0 and 3.
Multi I/O option.
Single SPI (SPI), Dual SPI (DPI), and Quad SPI (QPI).
High reliability.
Infinite read, write, and RECALL cycles.
One million STORE cycles to nonvolatile elements (SONOS FLASH Quantum trap).
Data retention: 20 years at 85 °C.
Read.
Comman.
