CG7501AA

The CG7501AA is 4-Mbit (512 K x 8) nvSRAM designed by Cypress.

Product Overview

Cypress

📥 Download Datasheet

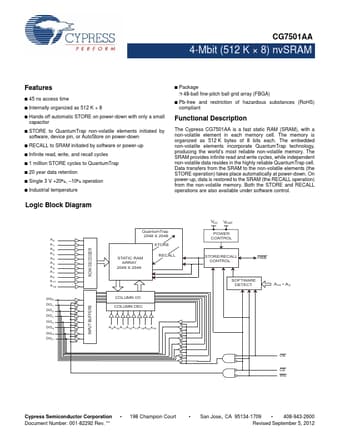

CG7501AA 4-Mbit (512 K x 8) nvSRAM by Cypress - Datasheet Preview — Datasheet preview – CG7501AA

Datasheet Details

Part number	CG7501AA
Manufacturer	Cypress
File Size	414.06 KB
Description	4-Mbit (512 K x 8) nvSRAM
Datasheet	CG7501AA-Cypress.pdf
Additional preview pages of the CG7501AA datasheet.

Product details

Description

The Cypress CG7501AA is a fast static RAM (SRAM), with a non-volatile element in each memory cell.

Features

45 ns access time.
Internally organized as 512 K × 8.
Hands off automatic STORE on power-down with only a small capacitor.
STORE to QuantumTrap non-volatile elements initiated by software, device pin, or AutoStore on power-down.
RECALL to SRAM initiated by software or power-up.
Infinite read, write, and recall cycles.
1 million STORE cycles to QuantumTrap.
20 year data retention.
Single 3 V +20,.
10 operation.
Industrial temperature.
