CCG3PA2 - USB Type-C Port Controller

Name: CCG3PA2
SKU: CCG3PA2-1578714

Cypress

📥 Download Datasheet

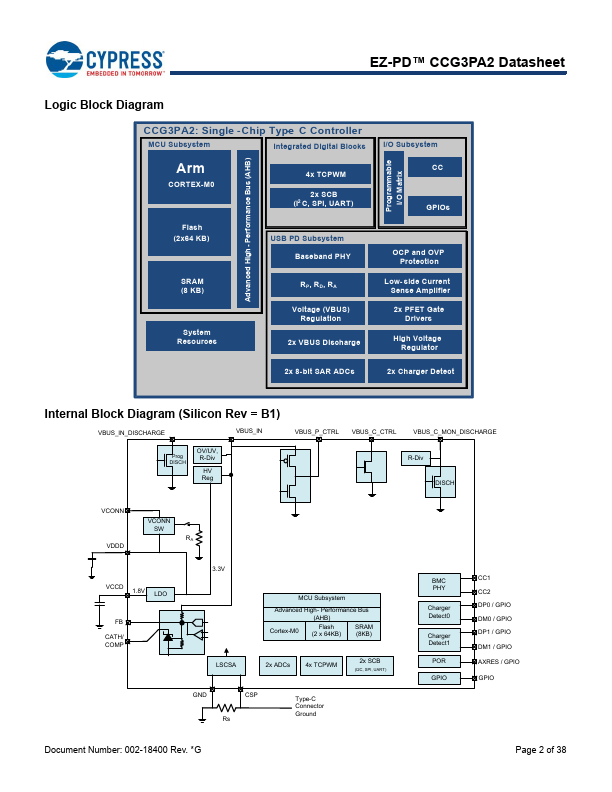

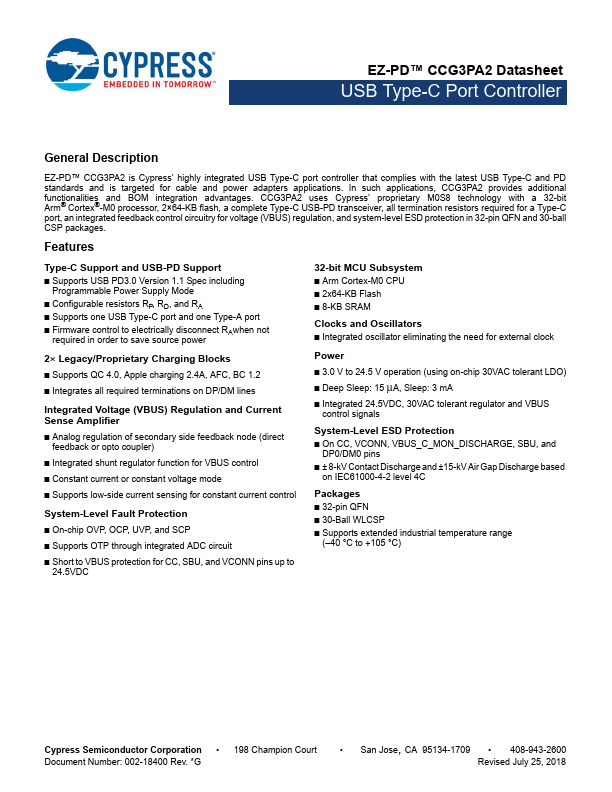

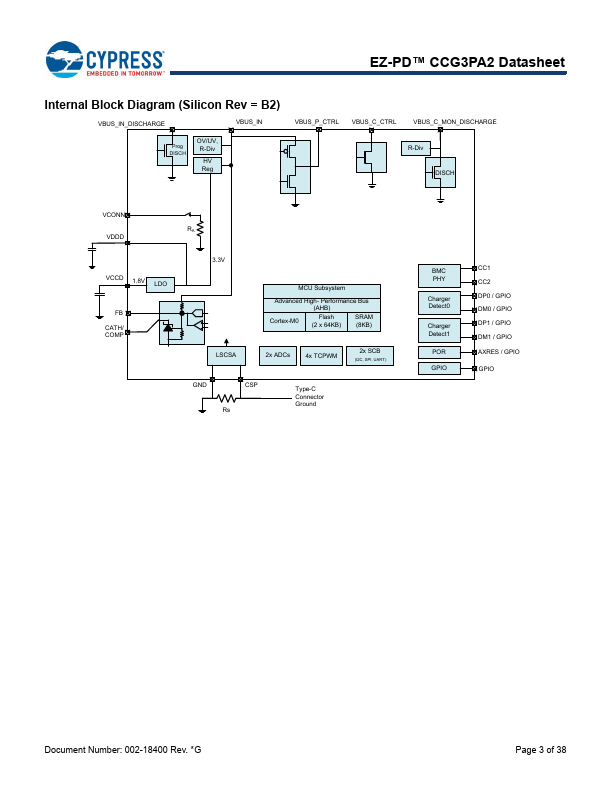

CCG3PA2 Datasheet Preview — Preview of CCG3PA2 PDF

Datasheet Details

Part number	CCG3PA2
Manufacturer	Cypress
File Size	522.97 KB
Description	USB Type-C Port Controller
Datasheet	CCG3PA2-Cypress.pdf

CCG3PA2 Product details

Description

EZ-PD™ CCG3PA2 is Cypress’ highly integrated USB Type-C port controller that complies with the latest USB Type-C and PD standards and is targeted for cable and power adapters applications.

Features

Type-C Support and USB-PD Support.
Supports USB PD3.0 Version 1.1 Spec including Programmable Power Supply Mode.
Configurable resistors RP, RD, and RA.
Supports one USB Type-C port and one Type-A port.
Firmware control to electrically disconnect RAwhen not required in order to save source power 2× Legacy/Proprietary Charging Blocks.
Supports QC 4.0, Apple charging 2.4A, AFC, BC 1.2.
Integrates all required terminations on DP/DM lines Integrated Voltage (VBUS) Regul.
