W255 - 200-MHz 24-Output Buffer

Datasheet Summary

Description

One input to 24-output buffer/driver Supports up to 4 DDR DIMMs or 3 SDRAM DIMMS One additional output for feedback SMBus interface for individual output control Low skew outputs (< 100 ps) Supports 266-, 333-, and 400-MHz DDR SDRAM

Features

Functional.

Cypress Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	W255
Manufacturer	Cypress Semiconductor
File Size	251.39 KB
Description	200-MHz 24-Output Buffer
Datasheet	W255 Datasheet
Additional preview pages of the W255 datasheet.

📁 Similar Datasheet

W2512 - Precision Thin Film Chip Resistors (TT electronics)
W25B40 - 4M-BIT SERIAL FLASH MEMORY (Winbond)
W25B40A - 4M-BIT SERIAL FLASH MEMORY (Winbond)
W25D10 - SERIAL FLASH MEMORY (Winbond)
W25D20 - SERIAL FLASH MEMORY (Winbond)
W25D40 - SERIAL FLASH MEMORY (Winbond)
W25D80 - SERIAL FLASH MEMORY (Winbond)
W25M02GV - 3V 2G-BIT SERIAL SLC NAND FLASH MEMORY (Winbond)
W25M02GW - 1.8V 2G-BIT SERIAL SLC NAND FLASH MEMORY (Winbond)
W25M121AV - SERIAL MCP FLASH MEMORY (Winbond)

Other Datasheets by Cypress Semiconductor

W256 - 12 Output Buffer for 2 DDR and 3 SRAM DIMMS

Full PDF Text Transcription

Click to expand full text

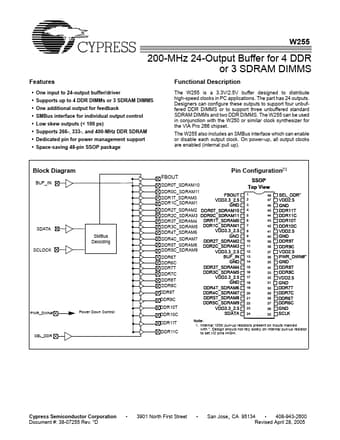

W255 200-MHz 24-Output Buffer for 4 DDR or 3 SDRAM DIMMS Features Functional Description • One input to 24-output buffer/driver • Supports up to 4 DDR DIMMs or 3 SDRAM DIMMS • One additional output for feedback • SMBus interface for individual output control • Low skew outputs (< 100 ps) • Supports 266-, 333-, and 400-MHz DDR SDRAM • Dedicated pin for power management support • Space-saving 48-pin SSOP package The W255 is a 3.3V/2.5V buffer designed to distribute high-speed clocks in PC applications. The part has 24 outputs. Designers can configure these outputs to support four unbuffered DDR DIMMS or to support three unbuffered standard SDRAM DIMMs and two DDR DIMMS. The W255 can be used in conjunction with the W250 or similar clock synthesizer for the VIA Pro 266 chipset.
