S6E2HE6 - 32-bit FM4 Microcontroller

Download the S6E2HE6 datasheet PDF (S6E2HG6 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 32-bit fm4 microcontroller.

Description

of peripheral feature and register differences.

Development kits:  FM4-U120-9B560 - ARM® Cortex®-M4 MCU Starter Kit with USB

Features

  • 32-bit ARM Cortex-M4F Core  Up to 160 MHz Frequency Operation.
  • On-chip Memories  MainFlash memory - Up to 512 Kbytes  WorkFlash memory - 32 Kbytes  SRAM.
  • SRAM0: Up to 32 Kbytes.
  • SRAM1: Up to 16 Kbytes.
  • SRAM2: Up to 16 Kbytes.
  • External Bus Interface.
  • CAN Interface (Max 2 channels).
  • Multi-function Serial Interface (Max 8 channels)  Universal Asynchronous Receiver/Transmitter (UART)  Clock Synchronous Serial Interface (CSIO (SPI))  Local Interc.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S6E2HG6-CypressSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Cypress Semiconductor

Full PDF Text Transcription

Click to expand full text

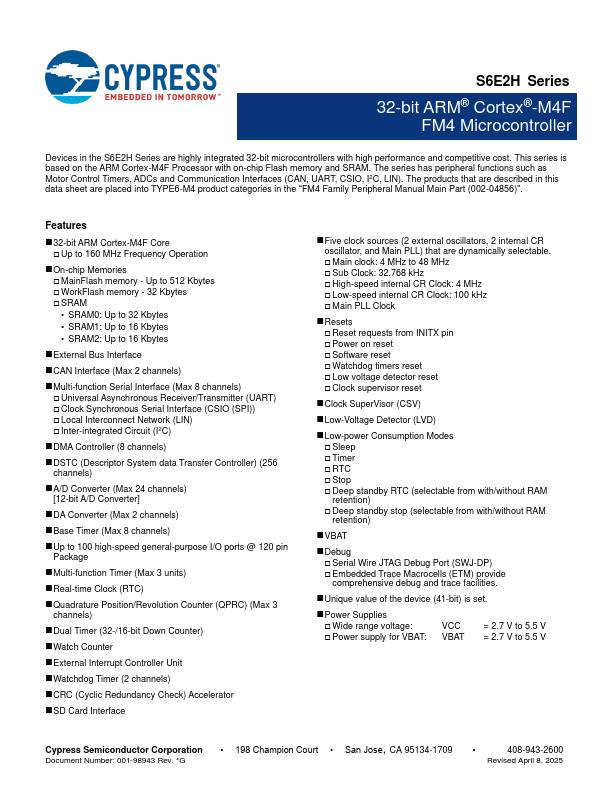

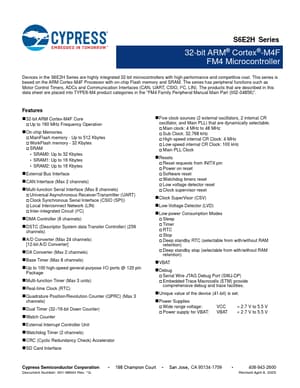

S6E2H Series 32-bit ARM® Cortex®-M4F FM4 Microcontroller Devices in the S6E2H Series are highly integrated 32-bit microcontrollers with high performance and competitive cost. This series is based on the ARM Cortex-M4F Processor with on-chip Flash memory and SRAM. The series has peripheral functions such as Motor Control Timers, ADCs and Communication Interfaces (CAN, UART, CSIO, I2C, LIN). The products that are described in this data sheet are placed into TYPE6-M4 product categories in the “FM4 Family Peripheral Manual Main Part (002-04856)”.
