S25FS128S - Serial Peripheral Interface

Cypress Semiconductor

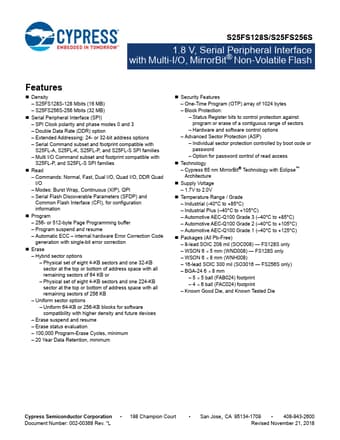

S25FS128S Datasheet Preview — Preview of S25FS128S PDF

Datasheet Details

Part number	S25FS128S
Manufacturer	Cypress Semiconductor
File Size	4.76 MB
Description	Serial Peripheral Interface
Datasheet	S25FS128S-CypressSemiconductor.pdf

S25FS128S Product details

Description

4 2.2 Migration Notes 5 2.3 Glossary 7 2.4 Other Resources 8 Hardware Interface 3. Signal Descriptions 9 3.1 Input/Output Summary 9 3.2 Multiple Input / Output (MIO) 10 3.3 Serial Clock (SCK) 10 3.4 Chip Select (CS#) 10 3.5 Serial Input (SI) / IO0 10 3.6 Serial Output (SO) / IO1 10 3.7 Write Protect (WP#) / IO2 10 3.8 IO3 / RESET# 11 3.9 Voltage Supply (VDD) 11 3.10 Supply and Signal Ground (VSS) 11 3.11 Not Connected (NC) 11 3.12 Reserved for Future Use (RFU) 11 3.13 Do Not Use (DNU)

Features

Density.
S25FS128S-128 Mbits (16 Mbytes).
S25FS256S-256 Mbits (32 Mbytes).
Serial Peripheral Interface (SPI).
SPI Clock polarity and phase modes 0 and 3.
Double Data Rate (DDR) option.
Extended Addressing: 24- or 32-bit address options.
Serial Command subset and footprint compatible with S25FL-A, S25FL-K, S25FL-P, and S25FL-S SPI families.
Multi I/O Command subset and footprint compatible with S25FL-P, and S25FL-S SPI fami.
