CYV15G0401DXB - Quad HOTLink Transceiver

Cypress Semiconductor

The CYV15G0401DXB by Cypress Semiconductor is a Quad HOTLink Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

CYV15G0401DXB Quad HOTLink Transceiver by Cypress Semiconductor - Datasheet Preview — Official preview page of the **CYV15G0401DXB** Quad HOTLink Transceiver datasheet (Cypress Semiconductor).

Datasheet Details

Part number	CYV15G0401DXB
Manufacturer	Cypress Semiconductor
File Size	722.50 KB
Description	Quad HOTLink Transceiver
Datasheet	CYV15G0401DXB_CypressSemiconductor.pdf

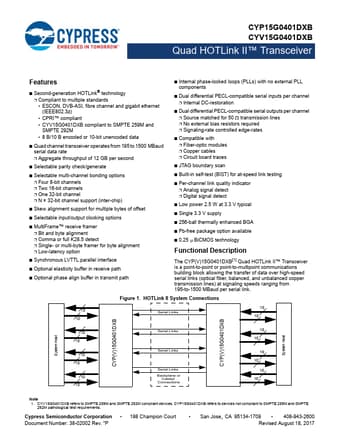

Additional preview pages of the CYV15G0401DXB datasheet.

CYV15G0401DXB Product details

Description

Synchronous LVTTL parallel interface Optional elasticity buffer in receive path Optional phase align buffer in transmit path The CYP(V)15G0401DXB[1] Quad HOTLink II™ Transceiver is a point-to-point or point-to-multipoint communications building block allowing the transfer of data over high-speed serial links (optical fiber, balanced, and unbalanced copper transmission lines) at signaling speeds ranging from 195-to-1500 MBaud per serial link.Figure 1. HOTLink II System Conne

Features

Second-generation HOTLink® technology.
Compliant to multiple standards.
ESCON, DVB-ASI, fibre channel and gigabit ethernet (IEEE802.3z).
CPRI™ compliant.
CYV15G0401DXB compliant to SMPTE 259M and SMPTE 292M.
8 B/10 B encoded or 10-bit unencoded data.
Quad channel transceiver operates from 195 to 1500 MBaud serial data rate.
Aggregate throughput of 12 GB per second.
Selectable parity check/generate.
Selectable multi-channel bondin.
