CY8C29566, CY8C29466 - Programmable System-on-Chip

Cypress Semiconductor

📥 Download Datasheet

CY8C29566 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY8C29566, CY8C29466. Please refer to the document for exact specifications by model.

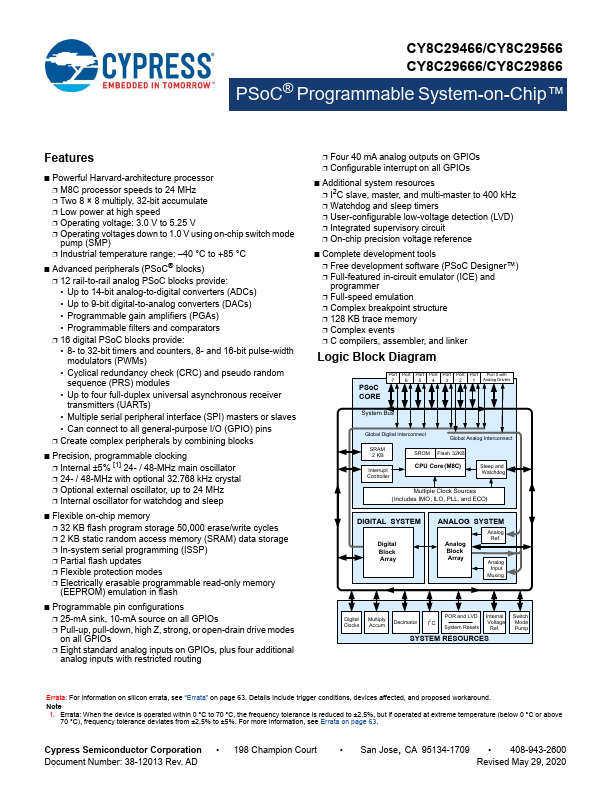

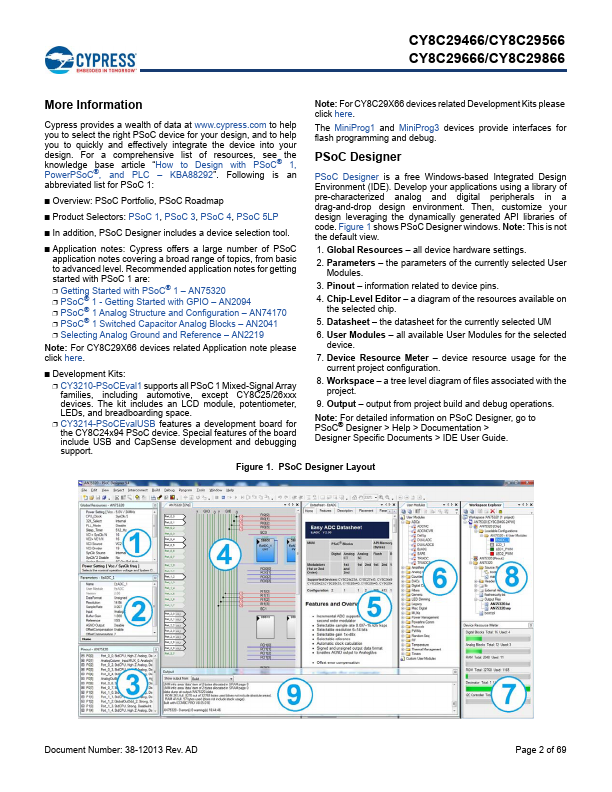

datasheet Preview Page 2

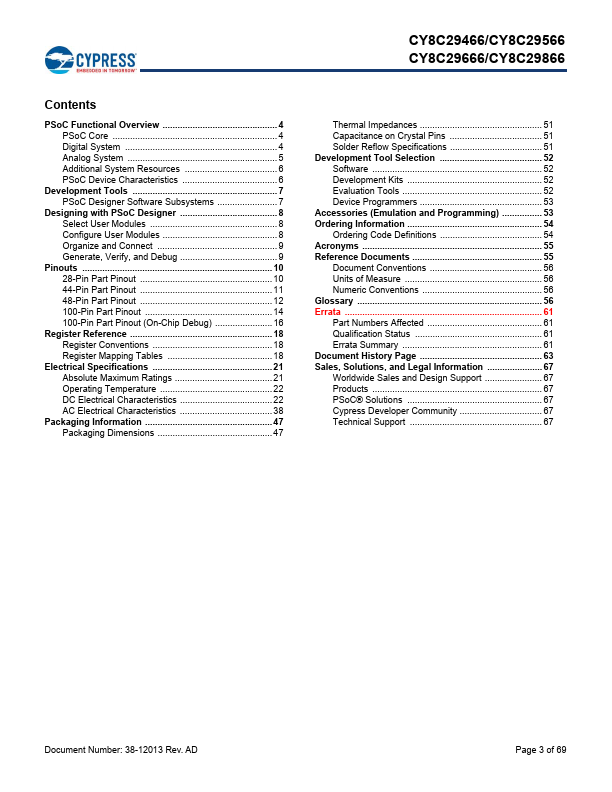

datasheet Preview Page 3

Datasheet Details

Part number	CY8C29566, CY8C29466
Manufacturer	Cypress Semiconductor
File Size	1.02 MB
Description	Programmable System-on-Chip
Datasheet	CY8C29466_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY8C29566, CY8C29466. Please refer to the document for exact specifications by model.

CY8C29566 Product details

Features

Powerful Harvard-architecture processor.
M8C processor speeds to 24 MHz.
Two 8 × 8 multiply, 32-bit accumulate.
Low power at high speed.
Operating voltage: 3.0 V to 5.25 V.
Operating voltages down to 1.0 V using on-chip switch mode pump (SMP).
Industrial temperature range:.
40 °C to +85 °C.
Advanced peripherals (PSoC® blocks).
12 rail-to-rail analog PSoC blocks provide:.
Up to 14-bit analog-to-digital converters (ADCs).
Up t.
