CY7C68301C, CY7C68300C - USB 2.0 to ATA/ATAPI Bridge

Cypress Semiconductor

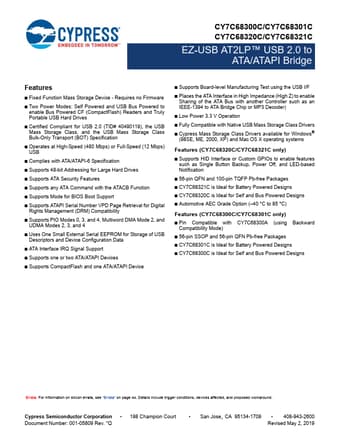

CY7C68301C Datasheet Preview — This datasheet PDF includes multiple part numbers: CY7C68301C, CY7C68300C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY7C68301C, CY7C68300C
Manufacturer	Cypress Semiconductor
File Size	560.77 KB
Description	USB 2.0 to ATA/ATAPI Bridge
Datasheet	CY7C68300C-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY7C68301C, CY7C68300C. Please refer to the document for exact specifications by model.

CY7C68301C Product details

Description

9 Additional Pin Descriptions 13 HID Functions for Button Controls 16 Functional Overview 16 USB Signaling Speed 16 ATA Interface 16 Operating Modes 19 Operational Mode Selection Flow 19 Fused Memory Data 20 Normal Mass Storage Mode 20 Board Manufacturing Test Mode

Features

Fixed Function Mass Storage Device - Requires no Firmware.
Two Power Modes: Self Powered and USB Bus Powered to enable Bus Powered CF (CompactFlash) Readers and Truly Portable USB Hard Drives.
Certified Compliant for USB 2.0 (TID# 40490119), the USB Mass Storage Class, and the USB Mass Storage Class Bulk-Only Transport (BOT) Specification.
Operates at High-Speed (480 Mbps) or Full-Speed (12 Mbps) USB.
Complies with ATA/ATAPI-6 Specification.
Supports 48-bit Address.
