CY7C68016A - High-Speed USB Peripheral Controller

Download the CY7C68016A datasheet PDF. This datasheet also covers the CY7C68013A variant, as both devices belong to the same high-speed usb peripheral controller family and are provided as variant models within a single manufacturer datasheet.

Description

For a complete list of related resources, click here.

Notes 1.

The actual I2C clock frequency will be different.

Features

  • USB 2.0 USB IF Hi-Speed certified (TID # 40460272).
  • Single-chip integrated USB 2.0 transceiver, smart SIE, and enhanced 8051 microprocessor.
  • Fit-, form-, and function-compatible with the FX2.
  • Pin-compatible0.
  • Object-code-compatible.
  • Functionally compatible (FX2LP is a superset).
  • Ultra-low power: ICC no more than 85 mA in any mode.
  • Ideal for bus- and battery-powered.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (CY7C68013A_CypressSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
CY7C63001C (CY7C63001C / CY7C63101C) Universal Serial Bun Microcontroller Cypress
CY7C63101C (CY7C63001C / CY7C63101C) Universal Serial Bun Microcontroller Cypress
CY7C63231A Low-speed USB Peripheral Controller Cypress
CY7C65215 USB-serial dual-channel bridge Infineon
CY7C65215A USB-serial dual-channel bridge Infineon

Other Datasheets by Cypress (Infineon)

Part Number Description
CY7C68013 EZ-USB FX2 USB Microcontroller High-speed USB Peripheral Controller
CY7C68013A High-Speed USB Peripheral Controller
CY7C68014A High-Speed USB Peripheral Controller
CY7C68015A High-Speed USB Peripheral Controller
CY7C68000 TX2 USB 2.0 UTMI Transceiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

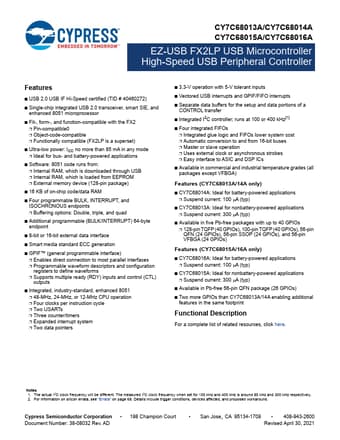

CY7C68013A/CY7C68014A CY7C68015A/CY7C68016A EZ-USB FX2LP USB Microcontroller High-Speed USB Peripheral Controller EZ-USB FX2LP USB Microcontroller High-Speed USB Peripheral Controller Features ■ USB 2.0 USB IF Hi-Speed certified (TID # 40460272) ■ Single-chip integrated USB 2.
