CY7C68000A - MoBL-USB TX2 USB 2.0 UTMI Transceiver

Cypress Semiconductor

The CY7C68000A by Cypress Semiconductor is a MoBL-USB TX2 USB 2.0 UTMI Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

CY7C68000A MoBL-USB TX2 USB 2.0 UTMI Transceiver by Cypress Semiconductor - Datasheet Preview — Official preview page of the **CY7C68000A** MoBL-USB TX2 USB 2.0 UTMI Transceiver datasheet (Cypress Semiconductor).

Datasheet Details

Part number	CY7C68000A
Manufacturer	Cypress Semiconductor
File Size	505.45 KB
Description	MoBL-USB TX2 USB 2.0 UTMI Transceiver
Datasheet	CY7C68000A_CypressSemiconductor.pdf

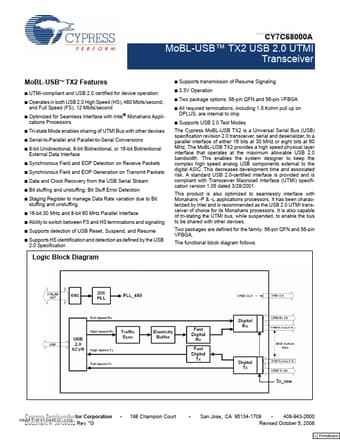

Additional preview pages of the CY7C68000A datasheet.

CY7C68000A Product details

Description

Normal operation Non-driving Disable Bit Stuffing and NRZI encoding Reserved Mode 0 enables the transceiver to operate with normal USB data decoding and encoding.Mode 1 enables the transceiver logic to support a soft disconnect feature that tri-states both the HS and FS transmitters, and removes any termination from the USB, making it appear to an upstream port that the device is disconnected from the bus.Mode 2 disables Bit Stuff and NRZI encoding logic so ‘1’s loaded from the data bus becom

Features

Supports transmission of Resume Signaling 3.3V Operation Two package options: 56-pin QFN and 56-pin VFBGA All required terminations, including 1.5 Kohm pull up on DPLUS, are internal to chip Supports USB 2.0 Test Modes UTMI-compliant and USB 2.0 certified for device operation Operates in both USB 2.0 High Speed (HS), 480 Mbits/second, and Full Speed (FS), 12 Mbits/second Opti.
