CY7C421 - 512 x 9 Asynchronous FIFO

Cypress Semiconductor

📥 Download Datasheet

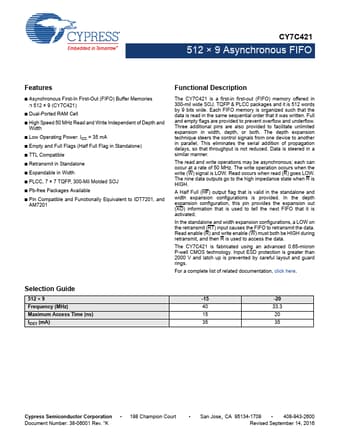

CY7C421 Datasheet Preview — Preview of CY7C421 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY7C421
Manufacturer	Cypress Semiconductor
File Size	838.57 KB
Description	512 x 9 Asynchronous FIFO
Datasheet	CY7C421-CypressSemiconductor.pdf

CY7C421 Product details

Description

The CY7C421 is a first-in first-out (FIFO) memory offered in 300-mil wide SOJ, TQFP & PLCC packages and it is 512 words by 9 bits wide.

Features

Asynchronous First-In First-Out (FIFO) Buffer Memories.
512 × 9 (CY7C421).
Dual-Ported RAM Cell.
High Speed 50 MHz Read and Write Independent of Depth and Width.
Low Operating Power: ICC = 35 mA.
Empty and Full Flags (Half Full Flag in Standalone).
TTL Compatible.
Retransmit in Standalone.
Expandable in Width.
PLCC, 7 × 7 TQFP, 300-Mil Molded SOJ.
Pb-free Packages Available.
Pin Compatible and Functionally Equivalent to IDT7201, and AM.
