CY7C006A - 16K x 8 Dual-Port Static RAM

Description

For a complete list of related documentation, click

Features

  • True dual-ported memory cells which allow simultaneous access of the same memory location.
  • 16K × 8 organization (CY7C006A).
  • 0.35-micron CMOS for optimum speed/power.
  • High-speed access: 20 ns.
  • Low operating power.
  • Active: ICC = 180 mA (typical).
  • Standby: ISB3 = 0.05 mA (typical).
  • Fully asynchronous operation.
  • Automatic power-down.
  • Expandable data bus to 16 bits or more using Master/Slave chip select when using more than one device Logic Block Dia.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CY7C008 64K/128K x 8/9 Dual-Port Static RAM Cypress
CY7C008V 3.3V 64K/128K x 8/9 Dual-Port Static RAM Cypress
CY7C009 64K/128K x 8/9 Dual-Port Static RAM Cypress
CY7C009V 128K x 8 Dual-Port Static RAM Cypress
CY7C018 64K/128K x 8/9 Dual-Port Static RAM Cypress

Other Datasheets by Cypress (Infineon)

Part Number Description
CY7C006AV Asynchronous Dual-Port Static RAM
CY7C006 (CY7C006 / CY7C016) 16K x 8/9 Dual-Port Static RAM
CY7C006V (CY7C006V - CY7C139V) Dual Port Static RAM
CY7C007A (CY7C006A - CY7C017A) Dual Port Static RAM
CY7C007AV (CY7C006AV - CY7C145AV) Dual Port Static RAM

Full PDF Text Transcription

Click to expand full text

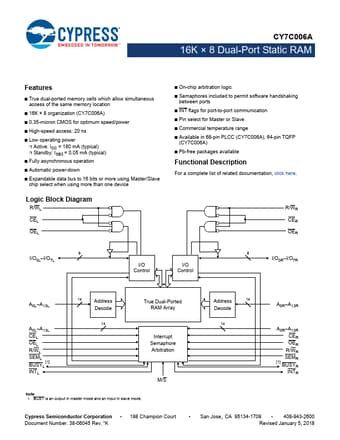

CY7C007A16K × 8 Dual-Port Static RAM CY7C006A 16K × 8 Dual-Port Static RAM 16K × 8 Dual-Port Static RAM Features ■ True dual-ported memory cells which allow simultaneous access of the same memory location ■ 16K × 8 organization (CY7C006A) ■ 0.35-micron CMOS for optimum speed/power ■ High-speed access: 20 ns ■ Low operating power ❐ Active: ICC = 180 mA (typical) ❐ Standby: ISB3 = 0.
