CY74FCT162H245T, CY74FCT16245T - 16-Bit Transceiver

Cypress Semiconductor

📥 Download Datasheet

CY74FCT162H245T Datasheet Preview — This datasheet PDF includes multiple part numbers: CY74FCT162H245T, CY74FCT16245T. Please refer to the document for exact specifications by model.

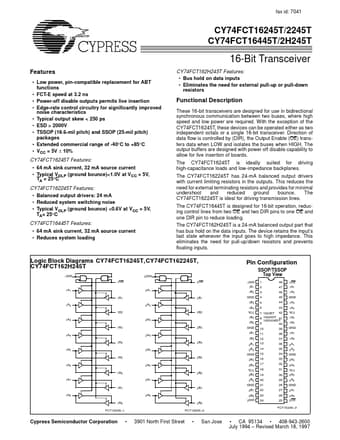

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY74FCT162H245T, CY74FCT16245T
Manufacturer	Cypress Semiconductor
File Size	159.68 KB
Description	16-Bit Transceiver
Datasheet	CY74FCT16245T-CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY74FCT162H245T, CY74FCT16245T. Please refer to the document for exact specifications by model.

CY74FCT162H245T Product details

Features

Low power, pin-compatible replacement for ABT functions.
FCT-E speed at 3.2 ns.
Power-off disable outputs permits live insertion.
Edge-rate control circuitry for significantly improved noise characteristics.
Typical output skew < 250 ps.
ESD > 2000V.
TSSOP (19.6-mil pitch) and SSOP (25-mil pitch) packages.
Extended commercial range of -40°C to +85°C.
VCC = 5V ± 10% CY74FCT16245T Features:.
64 mA sink curre.
