CY62136CV30, CY62136CV - 2M (128K x 16) Static RAM

Cypress Semiconductor

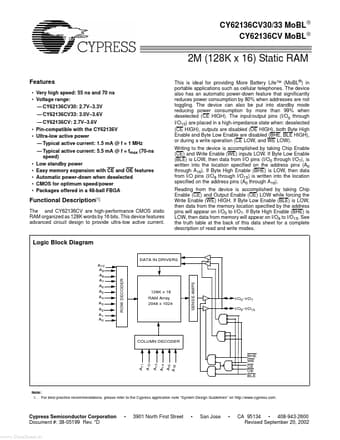

CY62136CV30 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY62136CV30, CY62136CV. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY62136CV30, CY62136CV
Manufacturer	Cypress Semiconductor
File Size	240.39 KB
Description	2M (128K x 16) Static RAM
Datasheet	CY62136CV_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY62136CV30, CY62136CV. Please refer to the document for exact specifications by model.

CY62136CV30 Product details

Description

of read and write modes. Functional Description[1] The and CY62136CV are high-performance CMOS static RAM organized as 128K words by 16 bits.This device

Features

Very high speed: 55 ns and 70 ns.
Voltage range:.
CY62136CV30: 2.7V.
3.3V.
CY62136CV33: 3.0V.
3.6V.
CY62136CV: 2.7V.
3.6V.
Pin-compatible with the CY62136V.
Ultra-low active power.
Typical active current: 1.5 mA @ f = 1 MHz.
Typical active current: 5.5 mA @ f = fmax (70-ns speed) Low standby power Easy memory expansion with CE and OE features Automatic power-down when deselected CMOS for optimu.
