CY3650, CY3651 - (CY3650 / CY3651) USB Developer Kit

Cypress Semiconductor

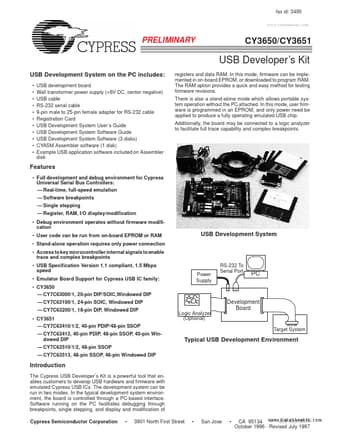

📥 Download Datasheet

CY3650 Datasheet Preview — This datasheet PDF includes multiple part numbers: CY3650, CY3651. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	CY3650, CY3651
Manufacturer	Cypress Semiconductor
File Size	102.09 KB
Description	(CY3650 / CY3651) USB Developer Kit
Datasheet	CY3651_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY3650, CY3651. Please refer to the document for exact specifications by model.

CY3650 Product details

Description

USB Developer’s Kit USB Developer’s Kit 3 www.DataSheet4U.com PRELIMINARY CY3650/CY3651 Figure 1. Debug Software Window in Typical Application Document #: 38-00553-B © Cypress Semiconductor Corporation, 1997. The information contained herein is subject to change without notice.Cypress Semiconductor Corporation assumes no responsibility for the use of any circuitry other than circuitry embodied in a Cypress Semiconductor product.Nor does it convey or imply any license under patent or othe

Features

Full development and debug environment for Cypress Universal Serial Bus Controllers:.
Real-time, full-speed emulation.
Software breakpoints.
Single stepping.
Register, RAM, I/O display/modification.
Debug environment operates without firmware modification.
User code can be run from on-board EPROM or RAM.
Stand-alone operation requires only power connection.
Access to key microcontroller internal signals to enable t.
