CY24133 - MediaClock Digital TV Clock Generator

Cypress Semiconductor

📥 Download Datasheet

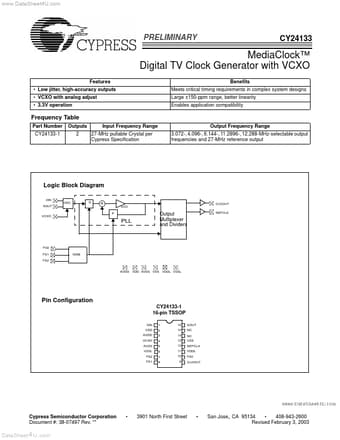

CY24133 Datasheet Preview — Preview of CY24133 PDF

Datasheet Details

Part number	CY24133
Manufacturer	Cypress Semiconductor
File Size	200.59 KB
Description	MediaClock Digital TV Clock Generator
Datasheet	CY24133_CypressSemiconductor.pdf

CY24133 Product details

Description

Name XIN VDD AVDD VCXO AVSS VSSL FS2 FS1 CLKOUT FS0 VDDL REFCLK VSS NC NC XOUT [1] Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Description Reference Crystal Input Voltage Supply Analog Voltage Supply Input Analog Control Voltage for VCXO Analog Ground Output Clock Ground Frequency Select 2 Frequency Select 1 Configurable Clock Output 1 at VDDL level Frequency Select 0 Clock Output Voltage Supply Reference Clock Output at VDDL level Ground No Connect No Connect Reference Crystal Output F

Features

Low jitter, high-accuracy outputs.
VCXO with analog adjust.
3.3V operation Benefits Meets critical timing requirements in complex system designs Large ±150-ppm range, better linearity Enables.
