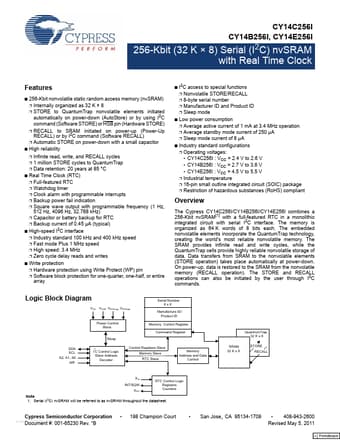

CY14E256I, CY14B256I - 256-Kbit (32 K x 8) Serial (I2C) nvSRAM

Cypress Semiconductor

Datasheet Details

Part number	CY14E256I, CY14B256I
Manufacturer	Cypress Semiconductor
File Size	2.28 MB
Description	256-Kbit (32 K x 8) Serial (I2C) nvSRAM
Datasheet	CY14B256I_CypressSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: CY14E256I, CY14B256I. Please refer to the document for exact specifications by model.

Clock: Runs at speeds

256-Kbit nonvolatile static random access memory (nvSRAM).
Internally organized as 32 K × 8.
STORE to QuantumTrap nonvolatile elements initiated automatically on power-down (AutoStore) or by using I2C command (Software STORE) or HSB pin (Hardware STORE).
RECALL to SRAM initiated on power-up (Power-Up RECALL) or by I2C command (Software RECALL).
Automatic STORE on power-down with a small capacitor.
High reliability.
Infinite read, write, and REC.
