CMD232C3 - 2-9 GHz Driver Amplifier

Description

The CMD232C3 is a wideband GaAs MMIC driver amplifier housed in a leadless 3x3 mm surface mount package.

The CMD232C3 is ideally suited for military, space and communications systems where small size and high linearity are needed.

Features

  • High gain.
  • Wide bandwidth.
  • Single positive supply voltage.
  • Pb-free RoHs compliant 3x3 QFN package.

📥 Download Datasheet

Datasheet Details

Part number CMD232C3
Manufacturer Custom MMIC
File Size 247.59 KB
Description 2-9 GHz Driver Amplifier
Datasheet download datasheet CMD232C3 Datasheet

📁 Similar Datasheet

  • CMD204 - SPST Non-reflective Switch (qorvo)
  • CMD204C3 - SPST Non-reflective Switch (qorvo)
  • CMD20N06L - 60V N-Channel MOSFET (Cmos)
  • CMD2264 - Novel Low Cost Green-Power PWM Controller (CMD)
  • CMD226C3 - Frequency Doubler (Qorvo)
  • CMD240C4 - Distributed Amplifier (qorvo)
  • CMD240P4 - DC-22GHz Distributed Amplifier (qorvo)
  • CMD242 - Distributed Amplifier (qorvo)
  • CMD252C4 - 4GHz - 8GHz I/Q Mixer (qorvo)
  • CMD259 - AMPS A-Band Duplexer (CMT)
Other Datasheets by Custom MMIC
  • CMD233 - 2- 20 GHz Distributed Low Noise Amplifier
  • CMD235C4 - DC-18 GHz SP5T Non-reflective Switch
  • CMD201P5 - DC-20 GHz Distributed Power Amplifier
  • CMD213 - 30-40 GHz Active Frequency Doubler
  • CMD214 - 24-36 GHz Active Frequency Doubler
  • CMD215 - DC-40 GHz SPDT Reflective Switch
  • CMD216 - 14-18 GHz GaN Power Amplifier
  • CMD218 - 5-9 GHz GaN Low Noise Amplifier

Full PDF Text Transcription

Click to expand full text

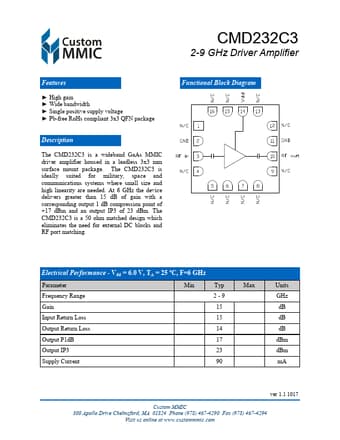

CMD232C3 2-9 GHz Driver Amplifier Features ► High gain ► Wide bandwidth ► Single positive supply voltage ► Pb-free RoHs compliant 3x3 QFN package Description The CMD232C3 is a wideband GaAs MMIC driver amplifier housed in a leadless 3x3 mm surface mount package. The CMD232C3 is ideally suited for military, space and communications systems where small size and high linearity are needed. At 6 GHz the device delivers greater than 15 dB of gain with a corresponding output 1 dB compression point of +17 dBm and an output IP3 of 23 dBm. The CMD232C3 is a 50 ohm matched design which eliminates the need for external DC blocks and RF port matching. Functional Block Diagram Electrical Performance - Vdd = 6.
