UF2A - Ultrafast Plastic Rectifier

The UF2A by Crownpo is a Ultrafast Plastic Rectifier. Below is the official datasheet preview.

Datasheet Details

Part number	UF2A
Manufacturer	Crownpo
File Size	46.22 KB
Description	Ultrafast Plastic Rectifier
Datasheet	UF2A-Crownpo.pdf

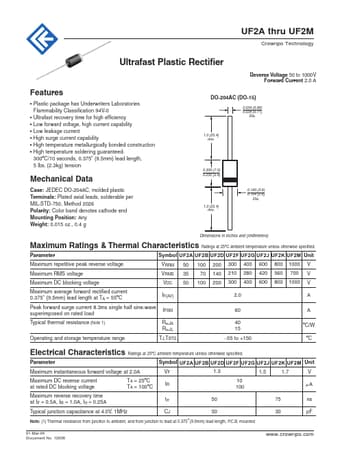

Additional preview pages of the UF2A datasheet.

N Plastic package has Underwriters Laboratories Flammability Classification 94V-0 N Ultrafast recovery time for high efficiency N Low forward voltage, high current capability N Low leakage current N High surge current capability N High temperature metallurgically bonded construction N High temperature soldering guaranteed: 300-C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data Case: JEDEC DO-204AC, molded plastic Terminals: Plated axial leads, solderable per MIL-STD.
