C4D10120E Silicon Carbide Schottky Diode

C4D10120E Description

C4D10120E Silicon Carbide Schottky Diode VRRM = 1200 V Z-Rec™ Rectifier .

C4D10120E Features

* Package IF (TC=135˚C) = 16 A Qc = 52 nC
* 1200-Volt Schottky Rectifier Zero Reverse Recovery Current High-Frequency Operation Temperature-Independent Switching Behavior Positive Temperature Coefficient on VF TO-252-2 Ben

C4D10120E Applications

* Solar Inverters Power Factor Correction Part Number C4D10120E Package TO-252-2 Marking C4D10120 Maximum Ratings (TC=25°C unless otherwise specified) Symbol Parameter VRRM VRSM VDC IF IFRM IFSM Ptot Tc TJ Tstg Repetitive Peak Reverse Voltage Surge Peak Reverse Voltage

📥 Download Datasheet

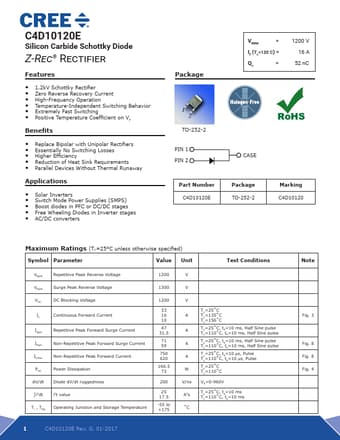

Preview of C4D10120E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C4D10120E
Manufacturer
Cree
File Size
688.50 KB
Datasheet
C4D10120E-Cree.pdf
Description
Silicon Carbide Schottky Diode
