C3D02060A Silicon Carbide Schottky Diode

C3D02060A Description

C3D02060A Silicon Carbide Schottky Diode VRRM = 600 V Z-Rec™ Rectifier .

C3D02060A Features

* Package IF (TC=135˚C) = 4 A Qc = 4.8 nC

C3D02060A Applications

* Part Number C3D02060A Package TO-220-2 Marking C3D02060
* Switch Mode Power Supplies Power Factor Correction - Typical PFC Pout : 300W-450W Maximum Ratings (TC = 25 ˚C unless otherwise specified) Symbol Parameter VRRM VRSM VDC IF Repetitive Peak Reverse Voltage Surge

📥 Download Datasheet

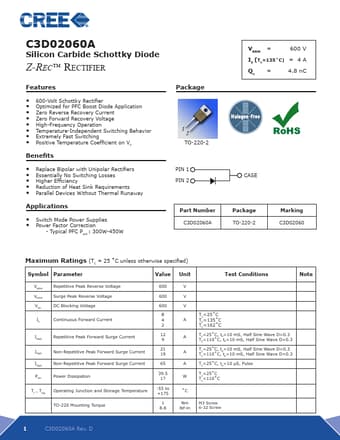

Preview of C3D02060A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C3D02060A
Manufacturer
Cree
File Size
832.92 KB
Datasheet
C3D02060A-Cree.pdf
Description
Silicon Carbide Schottky Diode
