CT131 - CotoMOS

Features

  • u Contact Form: 1a u Load Voltage: 350V Maximum u Operation LED Current: 3.0mA Maximum u Load Current: 130mA Maximum u On-Resistance: 24Ω Maximum u Low Off-State Leakage Current: 1.0μA Maximum u I/O Breakdown Voltage: 1500Vrms Minimum u Suffix - H for I/O Breakdown Voltage: 5000Vrms Minimum.

📥 Download Datasheet

Datasheet Details

Part number CT131
Manufacturer Coto
File Size 430.67 KB
Description CotoMOS
Datasheet download datasheet CT131 Datasheet

📁 Similar Datasheet

  • CT1-T - Current Transducer (LEM)
  • CT10-T - Current Transducers CT 10-T (LEM)
  • CT100 - 1D Linear Sensor (Allegro)
  • CT100-S - Current Transducers CT 100-S (LEM)
  • CT1003 - STANDARD LCD (ETC)
  • CT1007 - STANDARD LCD PANEL (ETC)
  • CT1010 - Phototransistor Optocoupler (CT Micro)
  • CT1010-W - Phototransistor Optocoupler (CT Micro)
  • CT1011 - Phototransistor Optocoupler (CT Micro)
  • CT1011-W - Phototransistor Optocoupler (CT Micro)
Other Datasheets by Coto

Full PDF Text Transcription

Click to expand full text

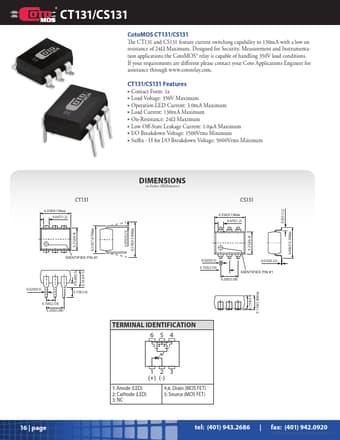

® CT131/CS131 CotoMOS CT131/CS131 The CT131 and CS131 feature current switching capability to 130mA with a low on resistance of 24Ω Maximum. Designed for Security, Measurement and Instrumentation applications the CotoMOS® relay is capable of handling 350V load conditions. If your requirements are different please contact your Coto Applications Engineer for assistance through www.cotorelay.com. CT131/CS131 Features u Contact Form: 1a u Load Voltage: 350V Maximum u Operation LED Current: 3.0mA Maximum u Load Current: 130mA Maximum u On-Resistance: 24Ω Maximum u Low Off-State Leakage Current: 1.0μA Maximum u I/O Breakdown Voltage: 1500Vrms Minimum u Suffix - H for I/O Breakdown Voltage: 5000Vrms Minimum DIMENSIONS in Inches (Millimeters) CT131 0.358(9.1)Max. 0.047(1.2) 0.310(7.87)Max. 0.
