KT101T - 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER

Cosmo

📥 Download Datasheet

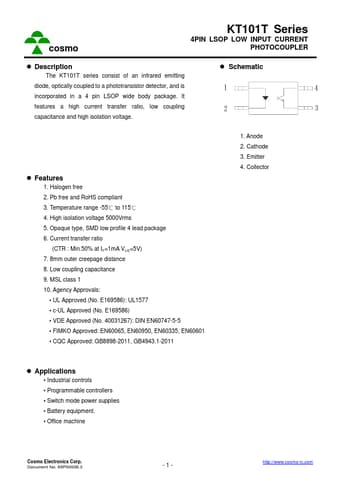

KT101T Datasheet Preview — Preview of KT101T PDF

Datasheet Details

Part number: KT101T
Manufacturer: Cosmo
File Size: 166.88 KB
Datasheet: KT101T-Cosmo.pdf
Description: 4PIN LSOP LOW INPUT CURRENT PHOTOCOUPLER

KT101T Product details

Description

The KT101T series consist of an infrared emitting diode, optically coupled to a phototransistor detector, and is incorporated in a 4 pin LSOP wide body package.

Features

a high current transfer ratio, low coupling capacitance and high isolation voltage. z Schematic 1 2 4 3 z Features 1. Halogen free 2. Pb free and RoHS compliant 3. Temperature range -55℃ to 115℃ 4. High isolation voltage 5000Vrms 5. Opaque type, SMD low profile 4 lead package 6. Current transfer ratio (CTR : Min.50% at IF=1mA VCE=5V) 7. 8mm outer creepage distance 8. Low coupling capacitance 9. MSL class 1 10. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approv.
