KPS28010ZC - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER

This page provides the datasheet information for the KPS28010ZC, a member of the KPS28010Z 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER family.

Description

The KPS28010Z series is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor.

It is packaged in a 4-pin SSOP package.

The input-output isolation voltage is rated at 3750 Vrms.

Schematic 1 2 4 3

Features

  • s 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage(Viso=3750Vrms) 4. Small and thin package(4pin SSOP, pin pitch 1.27mm) 5. Low input current type (IF=0.1mA) 6. Current transfer ratio (CTR : 100~600% at IF=0.1mA Vce=5V). 7. High collector to emitter voltage (VCEO=80V). 8. High-speed switching tr =3μs (typ. ), tf =5μs(typ. ). 9. MSL class 1 10. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40010.

📥 Download Datasheet

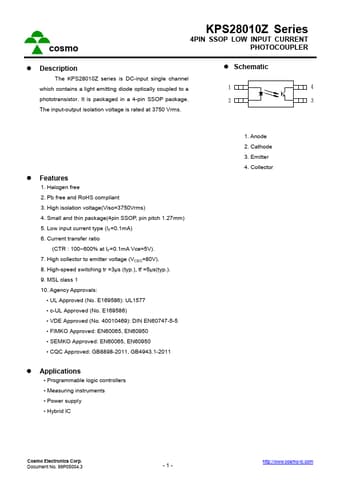

Datasheet preview – KPS28010ZC
