KPS28010ZA - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER

Download the KPS28010ZA datasheet PDF (KPS28010Z included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 4pin ssop low input current photocoupler.

Description

The KPS28010Z series is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor.

It is packaged in a 4-pin SSOP package.

The input-output isolation voltage is rated at 3750 Vrms.

Schematic 1 2 4 3

Features

  • s 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage(Viso=3750Vrms) 4. Small and thin package(4pin SSOP, pin pitch 1.27mm) 5. Low input current type (IF=0.1mA) 6. Current transfer ratio (CTR : 100~600% at IF=0.1mA Vce=5V). 7. High collector to emitter voltage (VCEO=80V). 8. High-speed switching tr =3μs (typ. ), tf =5μs(typ. ). 9. MSL class 1 10. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40010.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KPS28010Z-Cosmo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number KPS28010ZA
Manufacturer Cosmo
File Size 213.06 KB
Description 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
Datasheet download datasheet KPS28010ZA Datasheet

📁 Similar Datasheet

  • KPS28010W - 4 Pin SSOP Low Input Current Photocoupler (COSMO Electronics)
  • KPS2801 - 4PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER (COSMO Electronics)
  • KPS2802 - High Reliablility Phtocoupler (COSMO Electronics)
  • KPS2806 - High Reliablility Phtocoupler (COSMO Electronics)
  • KPS2832 - High Reliablility Phtocoupler (COSMO Electronics)
  • KPS-3227SP1C - AMBIENT LIGHT PHOTO SENSOR (Kingbright Corporation)
  • KPS-5130PD7C - RGB Color Sensor (Kingbright Corporation)
  • KPS1008C - Paper Sensor (KODENSHI KOREA)
  • KPS11N60D - N-Channel MOSFET (KEC)
  • KPS11N60F - N-Channel MOSFET (KEC)
Other Datasheets by Cosmo
  • KPS28010Z - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010ZB - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010ZC - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010ZD - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010ZE - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010T - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010TA - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010TB - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

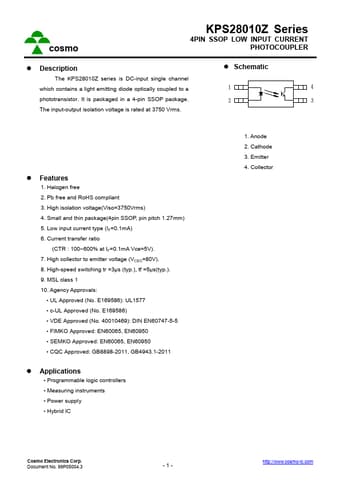

cosmo KPS28010Z Series 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER  Description The KPS28010Z series is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SSOP package. The input-output isolation voltage is rated at 3750 Vrms.  Schematic 1 2 4 3  Features 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage(Viso=3750Vrms) 4. Small and thin package(4pin SSOP, pin pitch 1.27mm) 5. Low input current type (IF=0.1mA) 6. Current transfer ratio (CTR : 100~600% at IF=0.1mA Vce=5V). 7. High collector to emitter voltage (VCEO=80V). 8. High-speed switching tr =3μs (typ.), tf =5μs(typ.). 9. MSL class 1 10. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No.
