KPS28010T - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER

Description

The KPS28010T series is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor.

It is packaged in a 4-pin SSOP package.

The input-output isolation voltage is rated at 3750Vrms.

Schematic 1 2 4 3

Features

  • s 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage (Viso=3750Vrms) 4. Small and thin package (4pin SSOP, pin pitch 1.27mm) 5. Low input current type (IF=1.0mA) 6. Current transfer ratio (CTR : 100~600% at IF=1.0mA, Vce=5V). 7. High collector to emitter voltage (VCEO=80V). 8. High-speed switching tr =3μs (typ. ), tf =5μs (typ. ). 9. MSL class 1 10. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 4.

📥 Download Datasheet

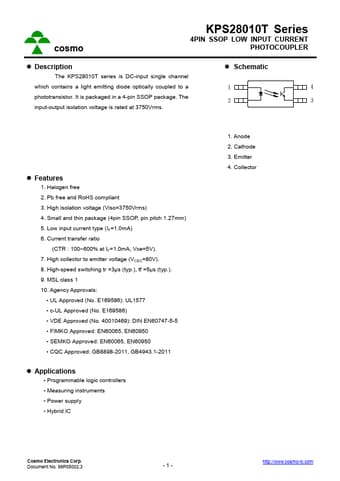

Datasheet preview – KPS28010T

Datasheet Details

Part number KPS28010T
Manufacturer Cosmo
File Size 206.52 KB
Description 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
Datasheet download datasheet KPS28010T Datasheet
Additional preview pages of the KPS28010T datasheet.

📁 Similar Datasheet

  • KPS28010W - 4 Pin SSOP Low Input Current Photocoupler (COSMO Electronics)
  • KPS2801 - 4PIN SSOP PHOTOTRANSISTOR PHOTOCOUPLER (COSMO Electronics)
  • KPS2802 - High Reliablility Phtocoupler (COSMO Electronics)
  • KPS2806 - High Reliablility Phtocoupler (COSMO Electronics)
  • KPS2832 - High Reliablility Phtocoupler (COSMO Electronics)
  • KPS-3227SP1C - AMBIENT LIGHT PHOTO SENSOR (Kingbright Corporation)
  • KPS-5130PD7C - RGB Color Sensor (Kingbright Corporation)
  • KPS1008C - Paper Sensor (KODENSHI KOREA)
  • KPS11N60D - N-Channel MOSFET (KEC)
  • KPS11N60F - N-Channel MOSFET (KEC)
Other Datasheets by Cosmo
  • KPS28010TA - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010TB - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010TC - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010TD - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010TE - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010Z - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010ZA - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER
  • KPS28010ZB - 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text
cosmo KPS28010T Series 4PIN SSOP LOW INPUT CURRENT PHOTOCOUPLER  Description The KPS28010T series is DC-input single channel which contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin SSOP package. The input-output isolation voltage is rated at 3750Vrms.  Schematic 1 2 4 3  Features 1. Halogen free 2. Pb free and RoHS compliant 3. High isolation voltage (Viso=3750Vrms) 4. Small and thin package (4pin SSOP, pin pitch 1.27mm) 5. Low input current type (IF=1.0mA) 6. Current transfer ratio (CTR : 100~600% at IF=1.0mA, Vce=5V). 7. High collector to emitter voltage (VCEO=80V). 8. High-speed switching tr =3μs (typ.), tf =5μs (typ.). 9. MSL class 1 10. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No.
