KPLT1320M40 - FIBER OPTIC TRANSMITTING MODULE

Features

  • TTL interface.
  • LED is driven by differential circuit.
  • A Self-tapping hole for easy attachment to audio Equipment panels.

📥 Download Datasheet

Datasheet preview – KPLT1320M40

Datasheet Details

Part number KPLT1320M40
Manufacturer Cosmo
File Size 147.37 KB
Description FIBER OPTIC TRANSMITTING MODULE
Datasheet download datasheet KPLT1320M40 Datasheet
Additional preview pages of the KPLT1320M40 datasheet.

📁 Similar Datasheet

  • KPLR1320A - FIBER OPTIC Receiver Module (COSMO Electronics Corporation)
Other Datasheets by Cosmo

Full PDF Text Transcription

Click to expand full text

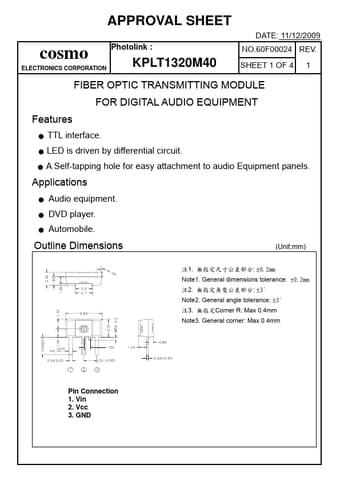

APPROVAL SHEET cosmo Photolink : KPLT1320M40 ELECTRONICS CORPORATION DATE: 11/12/2009 NO.60F00024 REV. SHEET 1 OF 4 1 FIBER OPTIC TRANSMITTING MODULE FOR DIGITAL AUDIO EQUIPMENT Features ● TTL interface. ● LED is driven by differential circuit. ● A Self-tapping hole for easy attachment to audio Equipment panels. Applications ● Audio equipment. ● DVD player. ● Automobile. Outline Dimensions (Unit:mm) 1. : ±0.2mm Note1. General dimensions tolerance: ±0.2mm 2. : ±3° Note2. General angle tolerance: ±3° 3. Corner R: Max 0.4mm Note3. General corner: Max 0.4mm Pin Connection 1. Vin 2. Vcc 3. GND APPROVAL SHEET cosmo Photolink : KPLT1320M40 ELECTRONICS CORPORATION DATE: 11/12/2009 NO. 60F00024 REV. SHEET 2 OF 4 1 1.
