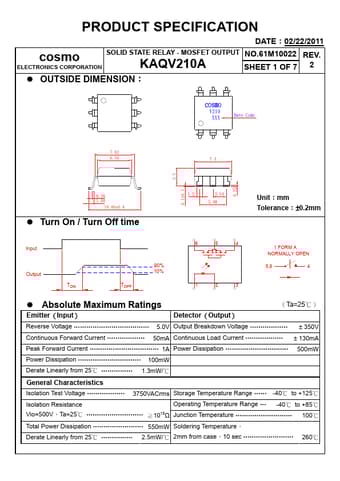

PRODUCT SPECIFICATION
DATE：02/22/2011
SOLID STATE RELAY - MOSFET OUTPUT NO.61M10022 REV.
cosmo KAQV210AELECTRONICS CORPORATION
SHEET 1 OF 7 2
z OUTSIDE DIMENSION︰
V210 XXX
Date Code
7.62 6.50
7.3
3.5 0.1±0.1
0.25
0.26 1.00
10.00±0.4
z Turn On / Turn Off time
1.2 2.54 5.08
Unit︰mm Tolerance︰±0.2mm
Input Output
TON
TOFF
90% 10%
654 123
1 FORM A NORMALLY OPEN
5,6 4
z Absolute Maximum Ratings
Emitter（Input）
Detector（Output）
（Ta=25℃）
Reverse Voltage ……………………………… 5.0V Output Breakdown Voltage ……………… ± 350V
Continuous Forward Current ……………… 50mA Continuous Load Current ……………… ± 130mA
Peak Forward Current …………………………… 1A Power Dissipation ………………………… 500mW
Power Dissipation ………………………… 100mW
Derate Linearly from 25℃ …………… 1.
KAQV210A Datasheet
