K10101W - LOW INPUT CURRENT PHOTOCOUPLER

Download the K10101W datasheet PDF. This datasheet also covers the K1010W variant, as both devices belong to the same low input current photocoupler family and are provided as variant models within a single manufacturer datasheet.

Description

The K1010 W series consist of an infrared emitting diode, optically coupled to a phototransistor detector.

They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option.

Features

  • 1. Current transfer ratio ( CTR：Min. 50% at IF=0.5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN60065, EN60950, EN60335.
  • SEMKO Approved: EN60065, EN60950, EN60335.
  • CQC Approved: GB8898-2011, GB4943.1-2011 1. Anode 2.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (K1010W-Cosmo.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number K10101W
Manufacturer Cosmo
File Size 214.65 KB
Description LOW INPUT CURRENT PHOTOCOUPLER
Datasheet download datasheet K10101W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
K1010-01 2SK1010-01 Fuji Electric
K1010MA600 Medium Voltage Thyristor IXYS
K1010MA650 Medium Voltage Thyristor IXYS
K101 Photocoupler(These Photocouplers consist of a Gallium Arsenide Infrared Emitting) KODENSHI KOREA CORP
K1011-01 N-Channel Silicon Power MOSFET Fuji Electric

Other Datasheets by Cosmo

Part Number Description
K10101T LOW INPUT CURRENT PHOTOCOUPLER
K10101X 4PIN PHOTOTRANSISTOR PHOTOCOUPLER
K10101Z LOW INPUT CURRENT PHOTOCOUPLER
K1010 4PIN PHOTOTRANSISTOR PHOTOCOUPLER
K10103T LOW INPUT CURRENT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text

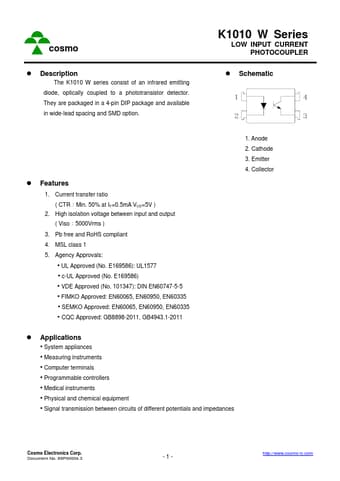

cosmo z Description The K1010 W series consist of an infrared emitting diode, optically coupled to a phototransistor detector. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. K1010 W Series LOW INPUT CURRENT PHOTOCOUPLER z Schematic z Features 1. Current transfer ratio ( CTR：Min. 50% at IF=0.5mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. MSL class 1 5. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No. 101347): DIN EN60747-5-5 • FIMKO Approved: EN60065, EN60950, EN60335 • SEMKO Approved: EN60065, EN60950, EN60335 • CQC Approved: GB8898-2011, GB4943.1-2011 1. Anode 2. Cathode 3. Emitter 4.
