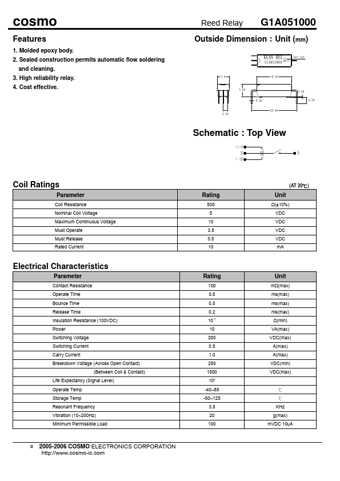

G1A051000 - Reed Relay

Cosmo

Datasheet Details

1. Molded epoxy body. 2. Sealed construction permits automatic flow soldering and cleaning. 3. High reliability relay. 4. Cost effective. Reed Relay G1A051000 Outside Dimension：Unit (mm) KUAN HSI G1A051000 XXX Date Code 7.0 19.50 2.54 7.00 0.50 25.40 0.40 3.50 Schematic : Top View (+) 1 2 (-)3 5 Coil Ratings Parameter Coil Resistance Nominal Coil Voltage Maximum Continuous Voltage Must Operate Must Release Rated Current Electrical Characteristics Parameter Contact Resistance Operate.
