CH941S, versatile digital Hall-effect

The CH941S, CH941E and CH941T are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet.

This unipolar sensors are designed to meet the requirements of a wide range of potential applications.

These economical unipolar sensor

CH941S Features

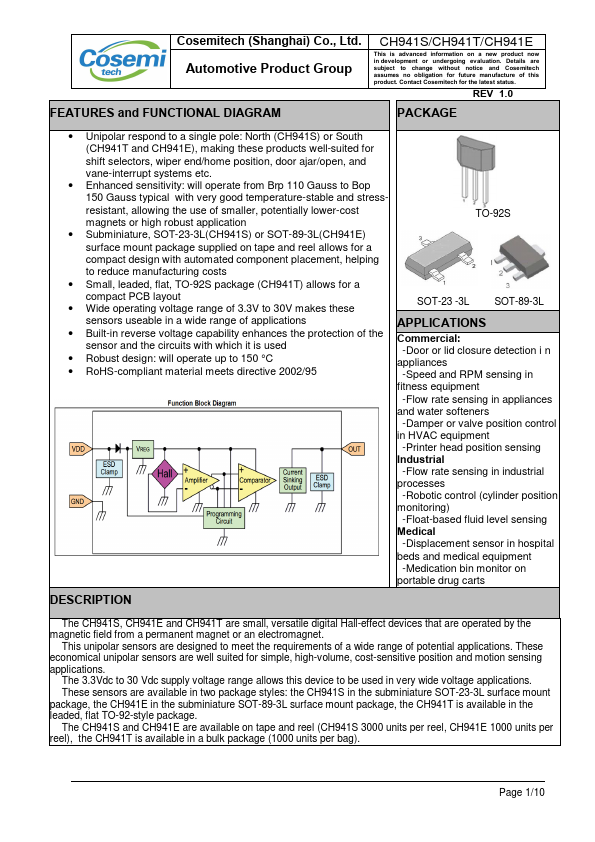

* and FUNCTIONAL DIAGRAM PACKAGE

* Unipolar respond to a single pole: North (CH941S) or South (CH941T and CH941E), making these products well-suited for shift selectors, wiper end/home position, door ajar/open, and vane-interrupt systems etc.

* Enhanced sensitivity: will operate from Brp
