DR1030-101-R, DR1030-1R1-R - Low Profile Power Inductors

The DR1030-101-R by Cooper Bussmann is a Low Profile Power Inductors. Below is the official datasheet preview.

📥 Download Datasheet

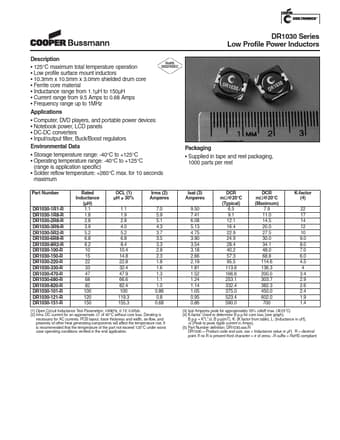

Official preview page of the DR1030-101-R Low Profile Power Inductors datasheet (Cooper Bussmann).

Datasheet Details

Part number DR1030-101-R, DR1030-1R1-R
Manufacturer Cooper Bussmann
File Size 177.67 KB
Description Low Profile Power Inductors
Datasheet download datasheet DR1030-1R1-R-CooperBussmann.pdf
Note This datasheet PDF includes multiple part numbers: DR1030-101-R, DR1030-1R1-R.
Please refer to the document for exact specifications by model.
Additional preview pages of the DR1030-101-R datasheet.

DR1030-101-R Product details

Description

125°C maximum total temperature operation Low profile surface mount inductors 10.3mm x 10.5mm x 3.0mm shielded drum core Ferrite core material Inductance range from 1.1µH to 150µH Current range from 9.5 Amps to 0.68 Amps Frequency range up to 1MHz RoHS 2002/95/EC Applications Computer, DVD players, and portable power devices Notebook power, LCD panels DC-DC converters Input/output fil
