CMW120R080M1 - 1200V N-channel SiC MOSFET

CMW120R080M1 Description

1..

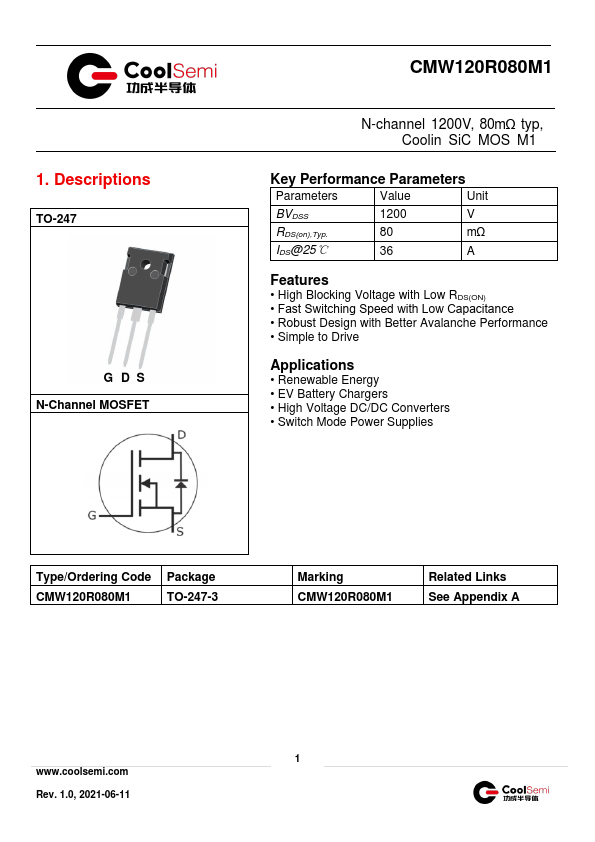

TO-247 G DS N-Channel MOSFET CMW120R080M1 N-channel 1200V, 80mΩ typ, Coolin SiC MOS M1 Key Performance Parameters Parameters Value Unit BVDSS.

CMW120R080M1 Features

* High Blocking Voltage with Low RDS(ON)
* Fast Switching Speed with Low Capacitance
* Robust Design with Better Avalanche Performance

CMW120R080M1 Applications

* Renewable Energy
* EV Battery Chargers
* High Voltage DC/DC Converters
* Switch Mode Power Supplies Type/Ordering Code Package CMW120R080M1 TO-247-3 Marking CMW120R080M1 Related Links See Appendix A 1 www. coolsemi. com Rev. 1.0, 2021-06-11 1200V Coolin SiC MOS

📥 Download Datasheet

Preview of CMW120R080M1 PDF

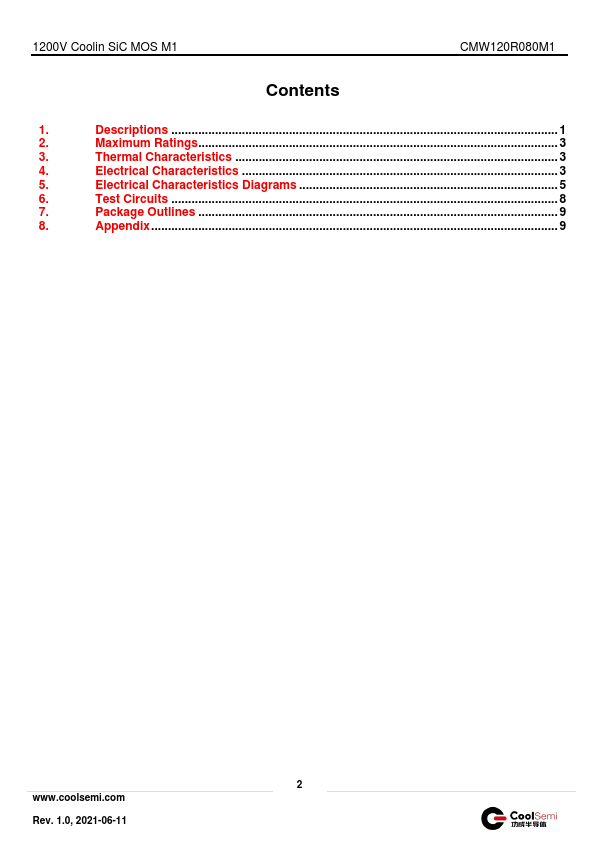

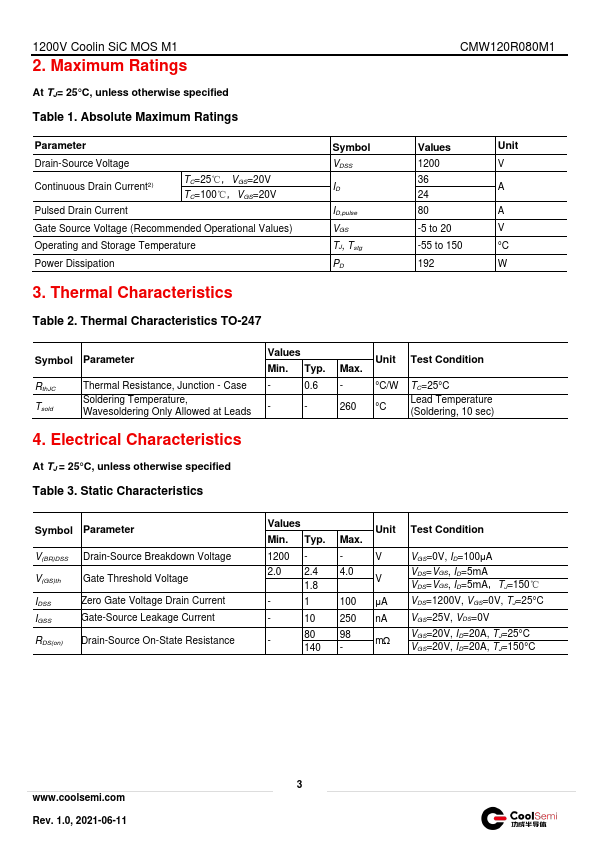

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CMW120R080M1
Manufacturer
CoolSemi
File Size
1.27 MB
Datasheet
CMW120R080M1-CoolSemi.pdf
Description
1200V N-channel SiC MOSFET
