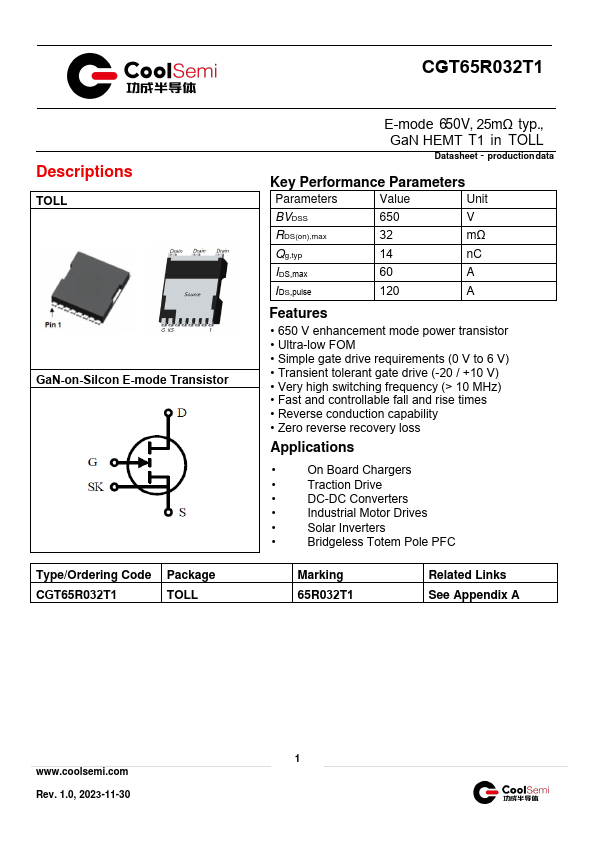

CGT65R032T1 - E-mode 650V GaN HEMT

CGT65R032T1 Datasheet Preview — Preview of CGT65R032T1 PDF

Datasheet Details

Part number	CGT65R032T1
Manufacturer	CoolSemi
File Size	1.56 MB
Description	E-mode 650V GaN HEMT
Datasheet	CGT65R032T1-CoolSemi.pdf

CGT65R032T1 Product details

Description

TOLL GaN-on-Silcon E-mode Transistor Type/Ordering Code Package CGT65R032T1 TOLL E-mode 650V, 25mΩ typ., GaN HEMT T1 in TOLL Datasheet - production data Key Performance Parameters Parameters Value Unit BVDSS 650 V RDS(on),max 32 mΩ Qg,typ 14 nC IDS,max 60 A IDS,pulse 120 A

Features

650 V enhancement mode power transistor.
Ultra-low FOM.
Simple gate drive requirements (0 V to 6 V).
Transient tolerant gate drive (-20 / +10 V).
Very high switching frequency (> 10 MHz).
Fast and controllable fall and rise times.
Reverse conduction capability.
Zero reverse recovery loss.
