CDH20G120D1 - 1200V SiC Schottky Diode

Name: CDH20G120D1
SKU: CDH20G120D1-1585998

📥 Download Datasheet

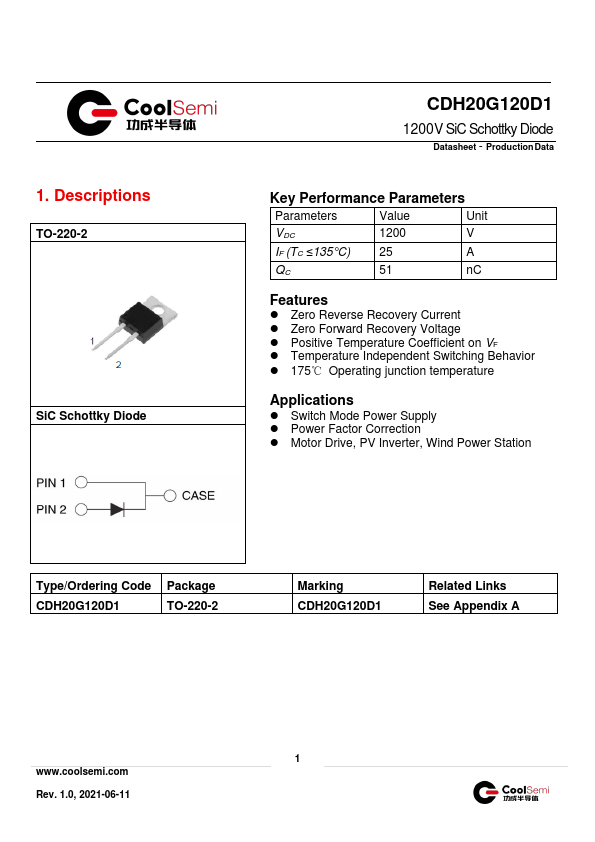

CDH20G120D1 Datasheet Preview — Preview of CDH20G120D1 PDF

Datasheet Details

Part number	CDH20G120D1
Manufacturer	CoolSemi
File Size	617.12 KB
Description	1200V SiC Schottky Diode
Datasheet	CDH20G120D1-CoolSemi.pdf

CDH20G120D1 Product details

Description

TO-220-2 SiC Schottky Diode CDH20G120D1 1200V SiC Schottky Diode Datasheet - Production Data Key Performance Parameters Parameters Value Unit VDC 1200 V IF (TC ≤135°C) 25 A QC 51 nC

Features

Zero Reverse Recovery Current.
Zero Forward Recovery Voltage.
Positive Temperature Coefficient on VF.
Temperature Independent Switching Behavior.
175℃ Operating junction temperature.
