DOCAT052V - Surface Mount Oven Stabilized Oscillator

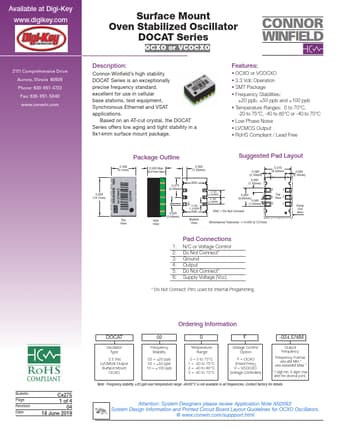

Download the DOCAT052V datasheet PDF (DOCAT052F included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for surface mount oven stabilized oscillator.

Description

Connor-Winfield’s high stability DOCAT Series is an exceptionally precise frequency standard, excellent for use in cellular base stations, test equipment, Synchronous Ethernet and VSAT applications.

Features

  • OCXO or VCOCXO.
  • 3.3 Vdc Operation.
  • SMT Package.
  • Frequency Stabilities: ±20 ppb, ±50 ppb and ±100 ppb.
  • Temperature Ranges: 0 to 70°C, -20 to 75°C, -40 to 85°C or -40 to 70°C.
  • Low Phase Noise.
  • LVCMOS Output.
  • RoHS Compliant / Lead Free 0.555 (14.1mm) Package Outline 0.358 (9.1mm) 0.335 Max (8.51mm Max) 0.275 (6.99mm) Top View Side View 0.025 (0.64mm) 1 Suggested Pad Layout 0.060 (1.52mm) DNC 0.085 (2.
