TIP36C, TIP36 Datasheet - Comset Semiconductors

TIP36C Silicon Power Transistors

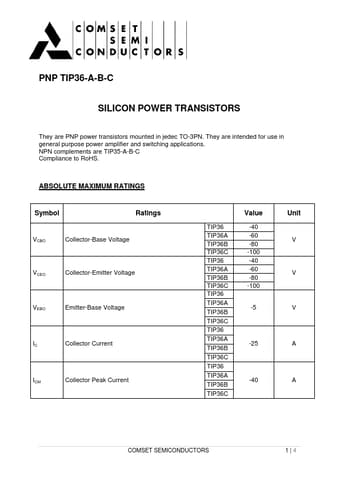

SEMICONDUCTORS PNP TIP36-A-B-C SILICON POWER TRANSISTORS They are PNP power transistors mounted in jedec TO-3PN. They are intended for use in general purpose power amplifier and switching applications. NPN complements are TIP35-A-B-C Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol Ratings TIP36 TIP36A TIP36B TIP36C TIP36 TIP36A TIP36B TIP36C TIP36 TIP36A TIP36B TIP36C TIP36 TIP36A TIP36B TIP36C TIP36 TIP36A TIP36B TIP36C Value -40 -60 -80 -100 -40 -60 -80 -100 Unit VCBO Collector-Bas.

TIP36_ComsetSemiconductors.pdf

This datasheet PDF includes multiple part numbers: TIP36C, TIP36. Please refer to the document for exact specifications by model.
TIP36C Datasheet Preview Page 2 TIP36C Datasheet Preview Page 3

Datasheet Details

Part number:

TIP36C, TIP36

Manufacturer:

Comset Semiconductors

File Size:

131.33 KB

Description:

Silicon power transistors.

Note:

This datasheet PDF includes multiple part numbers: TIP36C, TIP36.
Please refer to the document for exact specifications by model.
