TIC236C, TIC236A Datasheet - Comset Semiconductors

TIC236C (TIC236x) SILICON TRIACS

SEMICONDUCTORS TIC236A, TIC236B, TIC236C, TIC236D, TIC236E, TIC236M, TIC236N, TIC236S SILICON TRIACS High current triacs 12 A RMS Glass Passivated Wafer 100 V to 800 V Off-State Voltage Max IGT of 50 mA (Quadrants 1-3) Compliance to ROHS ABSOLUTE MAXIMUM RATINGS Value A VDRM IT(RMS) ITSM IGM TC Tstg TL Repetitive peak off-state voltage (see Note1) Full-cycle RMS on-state current at (or below) 70°C case temperature (see note2) Peak on-.

TIC236A_ComsetSemiconductors.pdf

This datasheet PDF includes multiple part numbers: TIC236C, TIC236A. Please refer to the document for exact specifications by model.

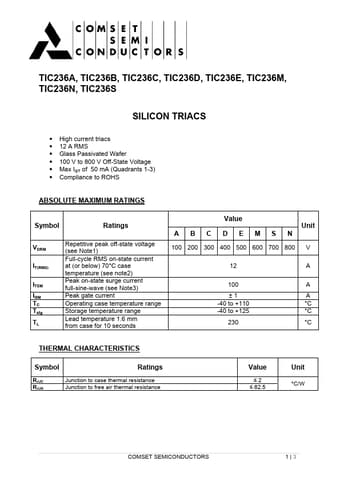

TIC236C Datasheet Preview Page 2 TIC236C Datasheet Preview Page 3

Datasheet Details

Part number:

TIC236C, TIC236A

Manufacturer:

Comset Semiconductors

File Size:

212.89 KB

Description:

(tic236x) silicon triacs.

Note:

This datasheet PDF includes multiple part numbers: TIC236C, TIC236A.
Please refer to the document for exact specifications by model.
