2N4399 Datasheet - Comset Semiconductor

2N4399 Silicon Power Transistors

PNP 2N4398 2N4399 2N5745 SILICON POWER TRANSISTORS They are PNP transistors mounted in Jedec TO-3 package. They are intended for use in power amplifier and switching circuits applications. Complement to NPN 2N5301 2N5302 2N5303. Compliance to RoHS. ABSOLUTE MAXIMUM RATINGS Symbol VCEO Collector-Emitter Voltage Ratings 2N4398 2N4399 2N5745 2N4398 2N4399 2N5745 2N4398 2N4399 2N5745 Value -40 -60 -80 -40 -60 -80 -5 -30 -20 50 -7.5 15 200 200 -65 to +200 .

2N4399 Datasheet (135.40 KB)

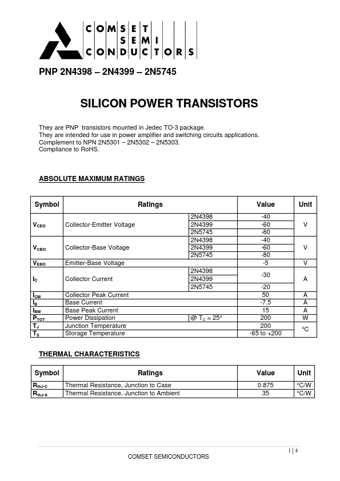

Preview of 2N4399 PDF
2N4399 Datasheet Preview Page 2 2N4399 Datasheet Preview Page 3

Datasheet Details

Part number:

2N4399

Manufacturer:

Comset Semiconductor

File Size:

135.40 KB

Description:

Silicon power transistors.
