C125R500P, C40R Datasheet - Component General

C125R500P Microwave Carbon Rod Resistors

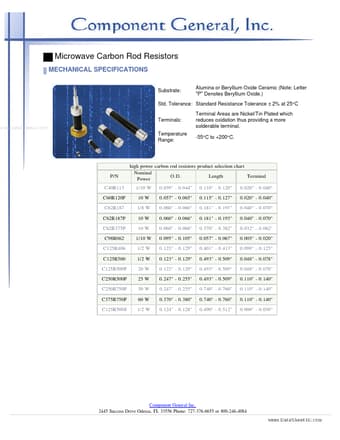

__ Microwave Carbon Rod Resistors _ MECHANICAL SPECIFICATIONS Substrate: Alumina or Beryllium Oxide Ceramic (Note: Letter "P" Denotes Beryllium Oxide.) Std. Tolerance: Standard Resistance Tolerance ± 2% at 25°C Terminals: www.DataSheet4U.com Terminal Areas are Nickel/Tin Plated which reduces oxidation thus providing a more solderable terminal. -55°C to +200°C. Temperature Range: P/N C40R115 C60R120P C62R187 C62R187P C62R375P C98R062 C125R406 C125R500 C125R500P C250R500P C250R750P C375R750P C.

C40R-115.pdf

This datasheet PDF includes multiple part numbers: C125R500P, C40R. Please refer to the document for exact specifications by model.
C125R500P Datasheet Preview Page 2 C125R500P Datasheet Preview Page 3

Datasheet Details

Part number:

C125R500P, C40R

Manufacturer:

Component General

File Size:

604.26 KB

Description:

Microwave carbon rod resistors.

Note:

This datasheet PDF includes multiple part numbers: C125R500P, C40R.
Please refer to the document for exact specifications by model.
