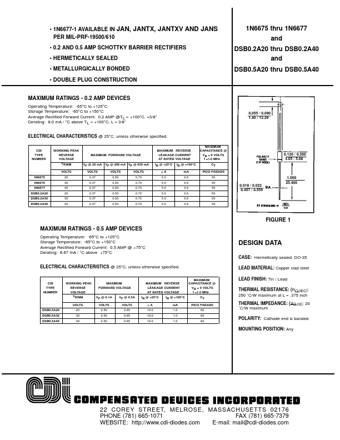

• 1N6677-1 AVAILABLE IN PER MIL-PRF-19500/610
JAN, JANTX, JANTXV AND JANS
1N6675 thru 1N6677 and DSB0.2A20 thru DSB0.2A40 and DSB0.5A20 thru DSB0.5A40
• 0.2 AND 0.5 AMP SCHOTTKY BARRIER RECTIFIERS • HERMETICALLY SEALED • METALLURGICALLY BONDED • DOUBLE PLUG CONSTRUCTION
MAXIMUM RATINGS - 0.2 AMP DEVICES
Operating Temperature: -65°C to +125°C Storage Temperature: -65°C to +150°C Average Rectified Forward Current: 0.2 AMP @TL = +100°C, =3/8” Derating: 8.0 mA / °C above TL = +100°C, L = 3/8” ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
CDI TYPE NUMBER WORKING PEAK REVERSE VOLTAGE VRWM VOLTS 1N6675 1N6676 1N6677 DSB0.2A20 DSB0.2A30 DSB0.2A40 20 30 40 20 30 40 MAXIMUM REVERSE LEAKAGE CURRENT AT RATED VOLTAGE IR @ +25°C IR @ +100°C mA 0.6 0.6 0.6 0.6 0.6 0.
