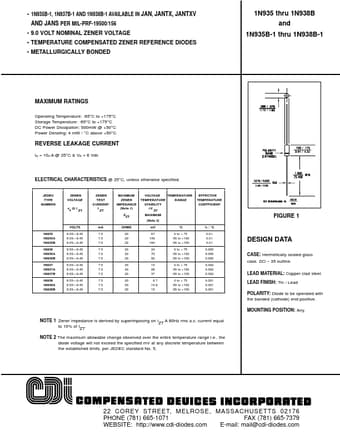

• 1N935B-1, 1N937B-1 AND 1N938B-1 AVAILABLE IN JAN, JANTX, JANTXV
AND JANS PER MIL-PRF-19500/156
• 9.0 VOLT NOMINAL ZENER VOLTAGE • TEMPERATURE COMPENSATED ZENER REFERENCE DIODES • METALLURGICALLY BONDED
1N935 thru 1N938B and 1N935B-1 thru 1N938B-1
MAXIMUM RATINGS
Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500mW @ +50°C Power Derating: 4 mW / °C above +50°C
REVERSE LEAKAGE CURRENT
lR = 10µ A @ 25°C & VR = 6 Vdc
ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified.
JEDEC TYPE NUMBER
ZENER VOLTAGE vz @ I ZT
ZENER TEST CURRENT I ZT
MAXIMUM ZENER IMPEDANCE (Note 1) Z ZT
VOLTAGE TEMPERATURE TEMPERATURE RANGE STABILITY ∆V ZT MAXIMUM (Note 2)
EFFECTIVE TEMPERATURE COEFFICIENT
FIGURE 1
% / °C 0.01 0.01 0.01 0.005 0.005 0.
1N936B Datasheet
